Same model may have multiple batches, images only for reference.

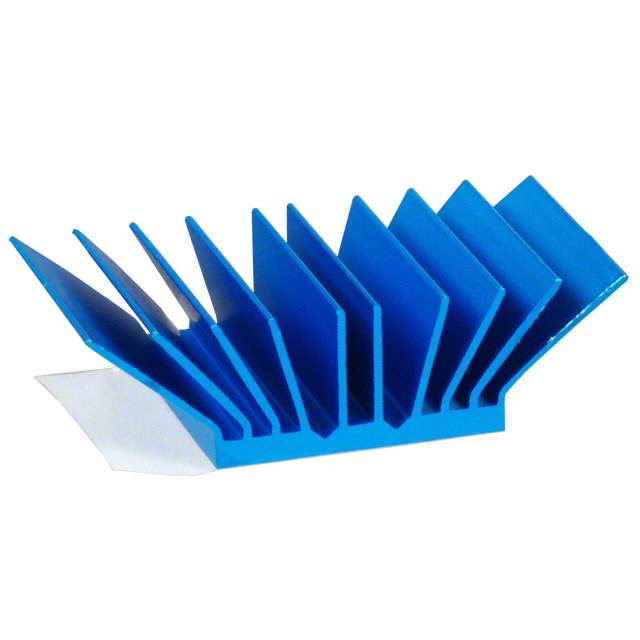

ATS-52250G-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-52250G-C1-R0

Part No ATS-52250G-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 25MM X 25MM X 12.5MM / Heat Sink BGA Aluminum Top Mount
Datasheet
ATS-52250G-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series maxiFLOW
Package Bulk
Type Top Mount
Package Cooled BGA
Attachment Method Thermal Tape, Adhesive (Included)
Shape Square, Angled Fins
Length 0.984" (25.00mm)
Width 0.984" (25.00mm)
Fin Height 0.492" (12.50mm)
Thermal Resistance @ Forced Air Flow 5.20°C/W @ 200 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-522
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS-52250G-C2-R0,ATS1118,ATS52250GC2R0
Standard Package 100
Win Source Part Number 1143645-ATS-52250G-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-52250G-C1-R0 CAD Model

Description

The ATS-52250G-C1-R0 is a top mount heat sink manufactured by Advanced Thermal Solutions Inc.

  • Category: Fans, Thermal Management>Thermal - Heat Sinks
  • Series: maxiFLOW
  • Shape: Square, Angled Fins
  • Material: Aluminum
  • Thermal Resistance: 5.20°C/W @ 200 LFM
  • ECCN: Unaffected
  • REACH: Unaffected
  • Material Finish: Blue Anodized
  • Dimensions Length: 0.984" (25.00mm)
  • Dimensions Width: 0.984" (25.00mm)
  • Fin Height: 0.492" (12.50mm)
