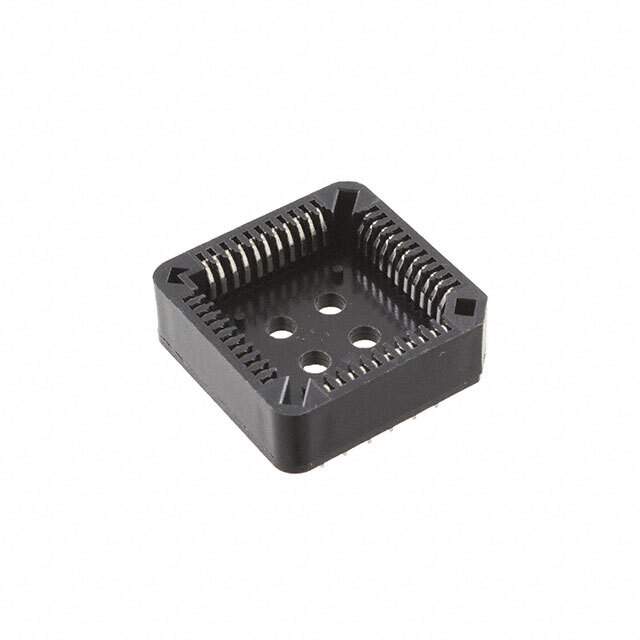

PLCC-44-AT Real Image
Same model may have multiple batches, images only for reference.

PLCC-44-AT

Part No PLCC-44-AT
Manufacturer Adam Technologies, Inc.
Catalog Sockets for ICs, Transistors
Description PLCC 44P THROUGH HOLE  /  44 (4 x 11) Pos PLCC Socket Tin Through Hole
Datasheet
PLCC-44-AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Adam Tech
Series PLCC
Package Tube
Type PLCC
Number of Positions or Pins (Grid) 44 (4 x 11)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 80.0µin (2.03µm)
Contact Material - Post Phosphor Bronze
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.126" (3.20mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Base Product Number PLCC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2057-PLCC-44-AT
Standard Package 24
Win Source Part Number 1172353-PLCC-44-AT
Ultra Librarian 3D Model Ultra Librarian PLCC-44-AT CAD Model

Description

The Adam Tech PLCC-44-AT is a connector socket for ICs and transistors.

  • Series: PLCC
  • Frame Type: Closed
  • Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Contact Material (Mating & Post): Phosphor Bronze
  • Contact Finish (Mating & Post): Tin
  • Contact Finish Thickness (Mating & Post): 80.0µin (2.03µm)
  • Termination: Solder
  • Mounting Type: Through Hole
  • Current Rating: 1 A
