Same model may have multiple batches, images only for reference.

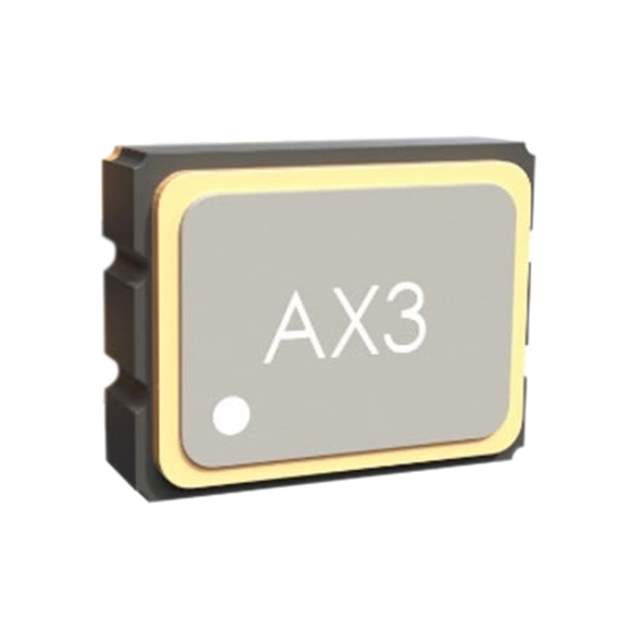

AX3DCF1-156.2500 Real Image
Same model may have multiple batches, images only for reference.

AX3DCF1-156.2500

Part No AX3DCF1-156.2500
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 156.25MHZ 1.8V LVDS / 156.25 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AX3
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 1.8V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 27mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337624-AX3DCF1-156.2500
Ultra Librarian 3D Model Ultra Librarian AX3DCF1-156.2500 CAD Model

Description

The ClearClock™ AX3 XO is a high-quality oscillator that is perfect for use in a variety of electronic applications.

  • Frequency Stability: ±25ppm
  • Frequency: 156.25 MHz
  • Output: LVDS
  • Voltage Supply: 1.8V
  • Mounting Type: Surface Mount
  • Package: 6-SMD, no lead
  • Packaging: Strip
  • Maximum Seated Height: 0.043" (1.10mm)
  • Function: Enable/Disable
  • Maximum Current Supply: 27mA
