Same model may have multiple batches, images only for reference.

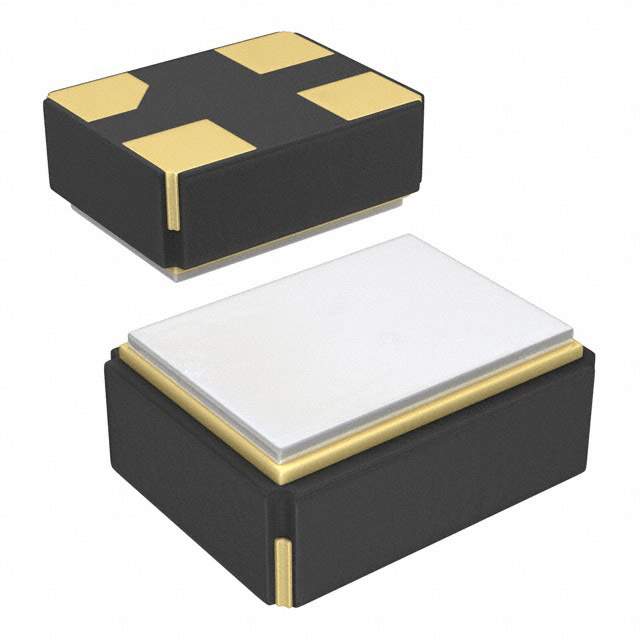

ASVTX-13-A-26.000MHZ-D15-T Real Image
Same model may have multiple batches, images only for reference.

ASVTX-13-A-26.000MHZ-D15-T

Part No ASVTX-13-A-26.000MHZ-D15-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC VCTCXO 26.0000MHZ SNWV / 26 MHz VCTCXO Clipped Sine Wave Oscillator 3V 4-SMD, No Lead
Datasheet
ASVTX-13-A-26.000MHZ-D15-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASVTX-13
Package Tape & Reel
Base Resonator Crystal
Type VCTCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 3V
Frequency Stability ±1.5ppm
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 1.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1348361-ASVTX-13-A-26.000MHZ-D15-T
Ultra Librarian 3D Model Ultra Librarian ASVTX-13-A-26.000MHZ-D15-T CAD Model

Description

The 1348361-ASVTX-13-A-26.000MHZ-D15-T is a surface mount VCTCXO oscillator from Abracon LLC's ASVTX-13 series.

  • Manufacturer: Abracon LLC
  • Series: ASVTX-13
  • Mounting Type: Surface Mount
  • Package / Case: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.031" (0.80mm)
  • Frequency: 26 MHz
  • Output: Clipped Sine Wave
  • Frequency Stability: ±1.5ppm
  • Current Supply Max: 1.5mA
  • Voltage Supply: 3V
  • Temperature Range: -30°C to 85°C
  • Package: Tape & Reel
  • REACH Status: Unaffected
  • HTSUS: 8542.39.0001
