Same model may have multiple batches, images only for reference.

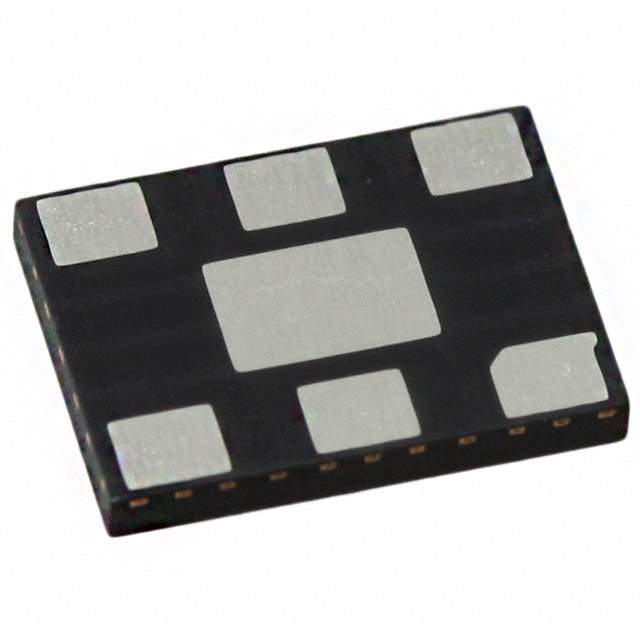

ASVMPC-20.000MHZ-Z-T Real Image
Same model may have multiple batches, images only for reference.

ASVMPC-20.000MHZ-Z-T

Part No ASVMPC-20.000MHZ-Z-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 20.0000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead Exposed Pad
Datasheet
ASVMPC-20.000MHZ-Z-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASVMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 2.25V ~ 3.6V
Temperature Range - Operating -55°C ~ 125°C
Current - Supply (Max) 35mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead Exposed Pad
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 22mA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337344-ASVMPC-20.000MHZ-Z-T
Ultra Librarian 3D Model Ultra Librarian ASVMPC-20.000MHZ-Z-T CAD Model

Description

The ASVMP Pure Silicon™ series XO oscillator from Abracon LLC is a surface mount component that comes in a tape and reel package.

  • Type: XO (Standard)
  • Frequency: 20 MHz
  • Function: Enable/Disable
  • Output: CMOS
  • Voltage - Supply: 2.25V ~ 3.6V
  • Frequency Stability: ±25ppm
  • Operating Temperature: -55°C ~ 125°C
  • Current - Supply (Max): 35mA
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, No Lead
  • Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height - Seated (Max): 0.035" (0.90mm)
  • Packaging: Tape & Reel (TR)
