Same model may have multiple batches, images only for reference.

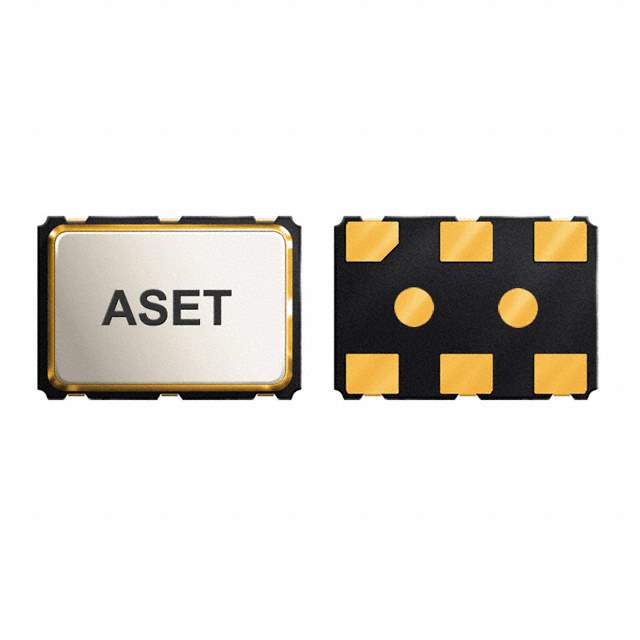

ASET-12.288MHZ-Y-T Real Image
Same model may have multiple batches, images only for reference.

ASET-12.288MHZ-Y-T

Part No ASET-12.288MHZ-Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 12.2880MHZ CMOS SMD / 12.288 MHz XO (Standard) CMOS Oscillator 3V Enable/Disable 6-SMD, No Lead
Datasheet
ASET-12.288MHZ-Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASET
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 12.288 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1141769-ASET-12.288MHZ-Y-T
Ultra Librarian 3D Model Ultra Librarian ASET-12.288MHZ-Y-T CAD Model

Description

The ASET series from Abracon LLC is a XO (Standard) oscillator with a frequency of 12.288MHz.

  • Frequency: 12.288MHz
  • Temperature Range: -40°C to 85°C
  • Packaging: Tape and Reel
  • Frequency Stability: ±10ppm
  • Voltage: 3V
  • Current Supply: 7mA
  • Current Supply (Disable): 10μA
  • Output: CMOS
