Same model may have multiple batches, images only for reference.

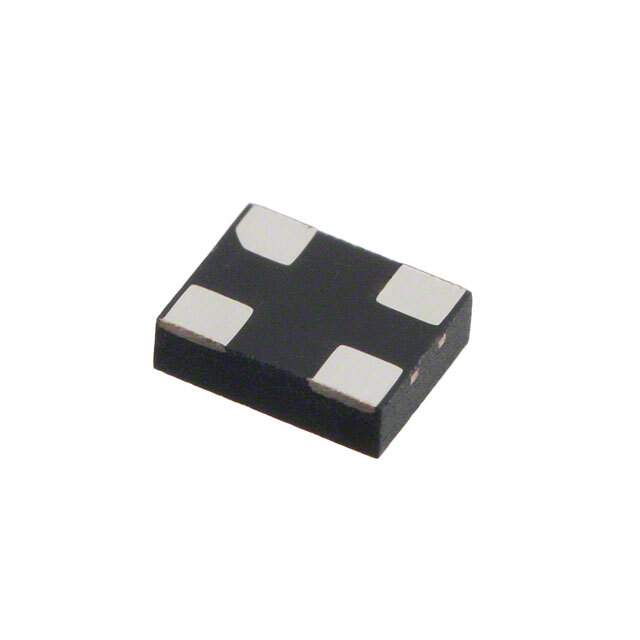

ASEMB-100.000MHZ-LY-T Real Image
Same model may have multiple batches, images only for reference.

ASEMB-100.000MHZ-LY-T

Part No ASEMB-100.000MHZ-LY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ CMOS SMD / 100 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-100.000MHZ-LY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1350341-ASEMB-100.000MHZ-LY-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-100.000MHZ-LY-T CAD Model

Description

The ASEMB series XO is a high-performance crystal oscillator designed for use in various electronic applications.

  • Frequency: 100 MHz
  • Voltage - Supply: 1.8V to 3.3V
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, No-Lead
  • Frequency Stability: ±10ppm
  • Current - Supply: Up to 16mA
  • Features: Standby
  • Output: CMOS
  • Height: 0.035 inches
  • Size: 0.126 inches by 0.098 inches
