Same model may have multiple batches, images only for reference.

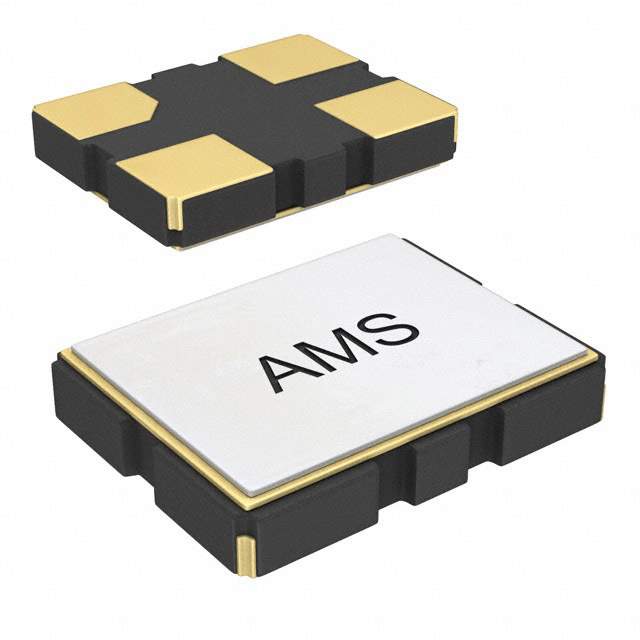

ASE-1.8432MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE-1.8432MHZ-LC-T

Part No ASE-1.8432MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 1.8432MHZ CMOS SMD / 1.8432 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 1.8432 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-9555-2,535-9555-1,Q4246455,ASE-1.8432MHZ-L-C-T,535-9555-6
Standard Package 1,000
Win Source Part Number 1182116-ASE-1.8432MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE-1.8432MHZ-LC-T CAD Model

Description

The Abracon LLC ASE-1.8432MHZ-LC-T is a CMOS output XO (Standard) oscillator that comes in a 4-SMD, no lead package.

  • Manufacturer: Abracon LLC
  • Frequency: 1.8432 MHz
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 7mA
  • Current Supply (Disable): 10μA
  • Height: 0.047”
  • Dimension: 0.126” L x 0.098” W
