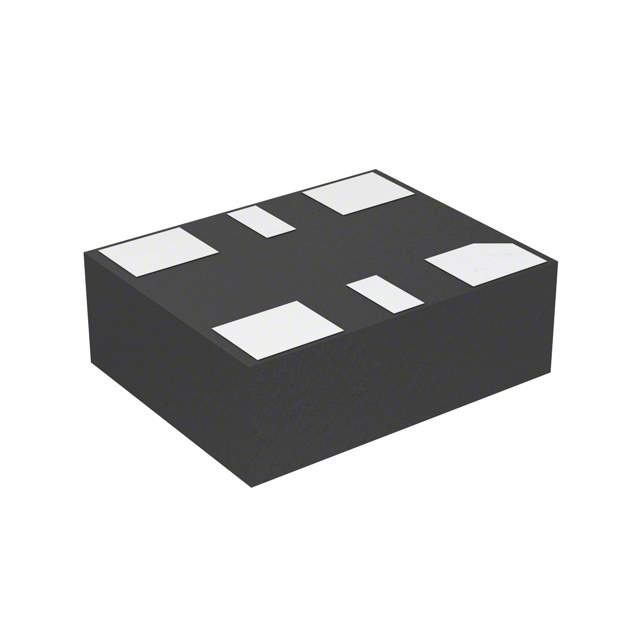

ASDMPLV-200.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASDMPLV-200.000MHZ-LR-T

Part No ASDMPLV-200.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 200.0000MHZ LVDS SMD / 200 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet
ASDMPLV-200.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASDMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 200 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 32mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 95µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338123-ASDMPLV-200.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASDMPLV-200.000MHZ-LR-T CAD Model

Description

The ASDMPLV-200.000MHZ-LR-T is a surface-mountable XO (Standard) oscillator from Abracon LLC.

  • Manufacturer: Abracon LLC
  • Product: ASDMPLV-200.000MHZ-LR-T
  • Series: ASDMP, Pure Silicon™
  • Oscillator Type: XO (Standard)
  • Frequency: 200 MHz
  • Packaging: Tape & Reel
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.035" (0.90mm) Seated
  • Output: LVDS
  • Function: Enable/Disable
  • Frequency Stability: ±25ppm
  • Current Supply (Max): 32mA
  • Voltage Supply: 2.25V ~ 3.6V
  • Operating Temperature: -40°C ~ 85°C
