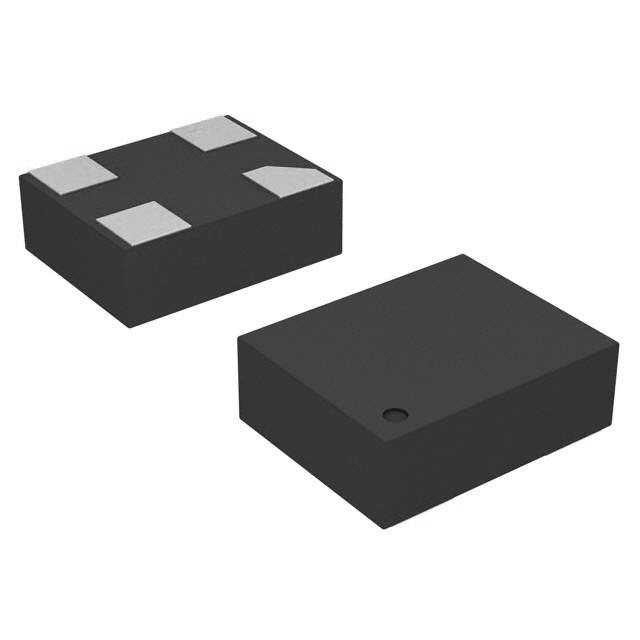

ASDM1-14.7456MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASDM1-14.7456MHZ-LC-T

Part No ASDM1-14.7456MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 14.7456MHZ LVCMOS / 14.7456 MHz XO (Standard) LVCMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASDM1-14.7456MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASDM, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 14.7456 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ASDM1147456MHZLCT,535-9786-1,535-9786-2,535-9786-6
Standard Package 1,000
Win Source Part Number 1125983-ASDM1-14.7456MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASDM1-14.7456MHZ-LC-T CAD Model

Description

The ASDM1-14.7456MHZ-LC-T is a pure silicon XO (standard) oscillator designed for use in electronic devices from Abracon LLC.

  • Frequency: 14.7456 MHz
  • Frequency Stability: ±50ppm
  • Height: 0.035" (0.90mm)
  • Packaging: tape & reel
  • Current Supply: 15mA
  • Current Supply (Disable): 15µA
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • Base Resonator: MEMS
