Same model may have multiple batches, images only for reference.

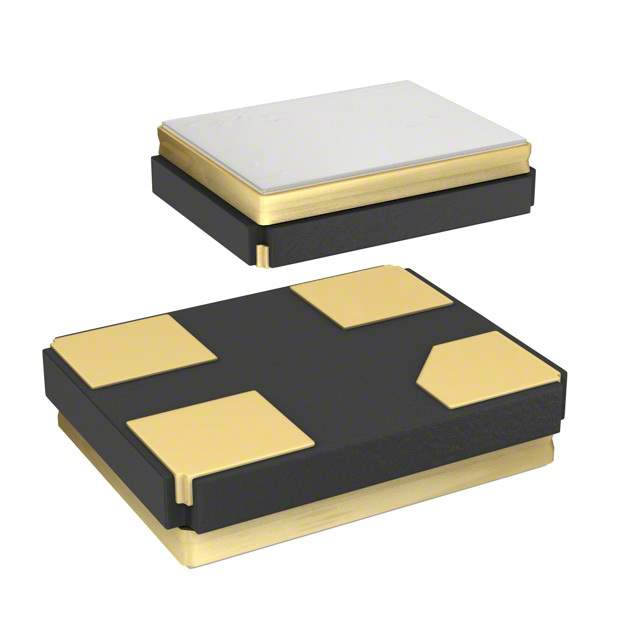

ASCO2-10.000MHZ-EK-T3 Real Image
Same model may have multiple batches, images only for reference.

ASCO2-10.000MHZ-EK-T3

Part No ASCO2-10.000MHZ-EK-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 10.0000MHZ CMOS SMD / 10 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
ASCO2-10.000MHZ-EK-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 10 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.8V
Frequency Stability ±30ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 3mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.028" (0.70mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-13179-1,ASCO2-10.000MHZ-EK-T3-ND,535-13179-6,535-13179-2
Standard Package 3,000
Win Source Part Number 1328191-ASCO2-10.000MHZ-EK-T3
Ultra Librarian 3D Model Ultra Librarian ASCO2-10.000MHZ-EK-T3 CAD Model

Description

The Abracon LLC ASCO2-10.000MHZ-EK-T3 is a surface mount crystal oscillator (XO) which offers a frequency stability of ±30ppm and operates @ a frequency of 10 MHz.

  • Manufacturer: Abracon LLC
  • Product Name: ASCO2-10.000MHZ-EK-T3
  • Type: Crystal Oscillator (XO)
  • Mounting Type: Surface Mount
  • Frequency Stability: ±30ppm
  • Frequency: 10 MHz
  • Output: CMOS
  • Current Supply: Up to 3mA
  • Function: Enable/Disable
  • Case/Package: 4-SMD, no-lead
