Same model may have multiple batches, images only for reference.

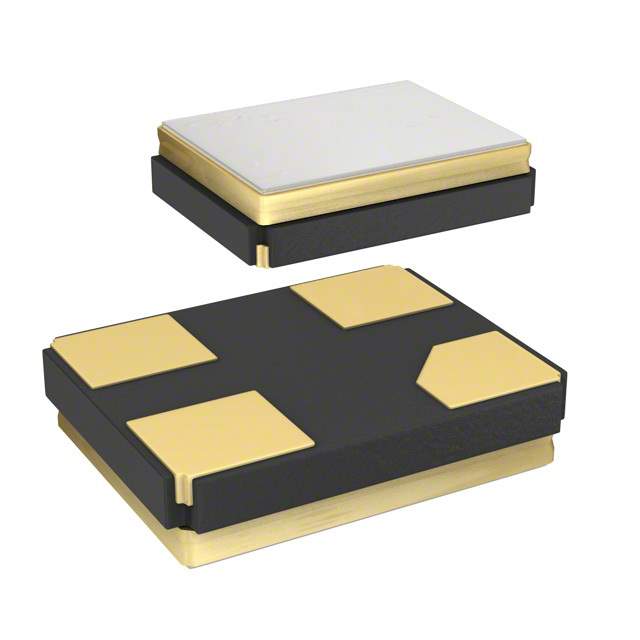

ASCO2-1.8432MHZ-EK-T3 Real Image
Same model may have multiple batches, images only for reference.

ASCO2-1.8432MHZ-EK-T3

Part No ASCO2-1.8432MHZ-EK-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 1.8432MHZ CMOS SMD / 1.8432 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
ASCO2-1.8432MHZ-EK-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASCO
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 1.8432 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.8V
Frequency Stability ±30ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 3mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1142618-ASCO2-1.8432MHZ-EK-T3
Ultra Librarian 3D Model Ultra Librarian ASCO2-1.8432MHZ-EK-T3 CAD Model

Description

The ASCO2-1.8432MHZ-EK-T3 is an oscillator from Abracon LLC.

  • Output: CMOS
  • Type: XO (standard)
  • Package: Tape and Reel
  • Units per Reel: 3,000
  • Frequency: 1.8432 MHz
  • Frequency Stability: ±30ppm
  • Height-Seated (max): 0.028" (0.70mm)
  • Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Operating Temperature: -20°C ~ 70°C
  • Mounting: SMD (SMT)
