Same model may have multiple batches, images only for reference.

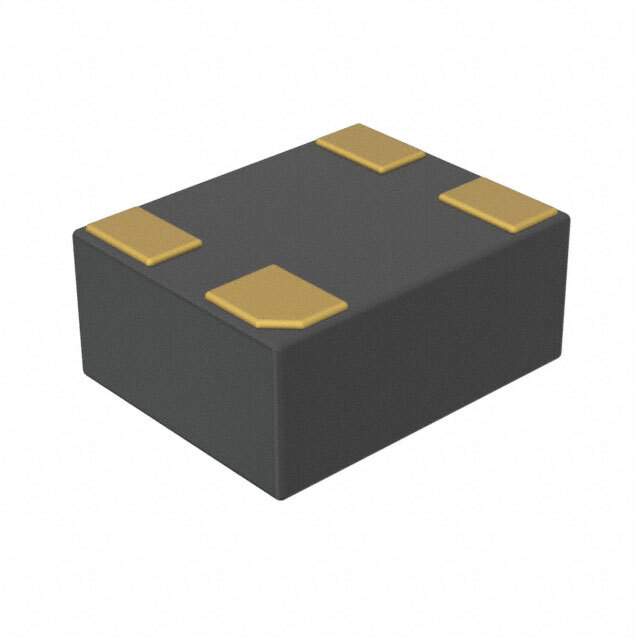

AMPMAGD-48.0000 Real Image
Same model may have multiple batches, images only for reference.

AMPMAGD-48.0000

Part No AMPMAGD-48.0000
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 48.0000MHZ CMOS SMD / 48 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Datasheet
AMPMAGD-48.0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency 48 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
Current - Supply (Disable) (Max) 160µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 100
Win Source Part Number 1044051-AMPMAGD-48.0000
Ultra Librarian 3D Model Ultra Librarian AMPMAGD-48.0000 CAD Model

Description

The AMPM series XO (Standard) oscillator is a standby (power down) CMOS output oscillator with a frequency of 48 MHz and a frequency stability of ±50ppm.

  • Frequency: 48 MHz
  • Frequency Stability: ±50ppm
  • Current Supply: 1.3mA (Typ)
  • Maximum Disable Current Supply: 160μA
  • Voltage Supply: 1.71V to 3.63V
  • Mounting: SMD (SMT)
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.079” L x 0.063” W (2.00mm x 1.60mm)
  • Output: CMOS
  • Function: Standby (Power Down)
