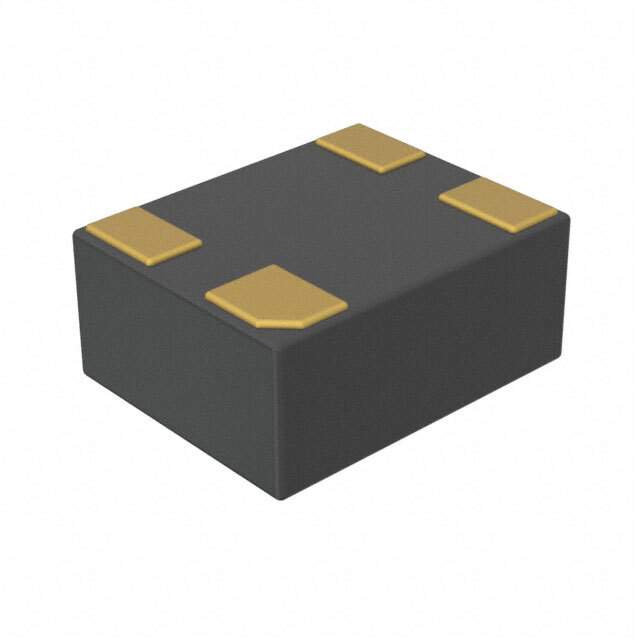

AMPMAFC-11.0590T3 Real Image
Same model may have multiple batches, images only for reference.

AMPMAFC-11.0590T3

Part No AMPMAFC-11.0590T3
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 11.0590MHZ CMOS SMD / 11.059 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMPMAFC-11.0590T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 11.059 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1074763-AMPMAFC-11.0590T3
Ultra Librarian 3D Model Ultra Librarian AMPMAFC-11.0590T3 CAD Model

Description

The AMPMAFC-11.0590T3 is a standard type oscillator with a 4-SMD, No Lead package.

  • Package: 4-SMD, No Lead
  • Frequency: 11.059 MHz
  • Frequency Stability: ±25ppm
  • Output: CMOS
  • Function: Enable/Disable
  • Height: 0.035 inches
  • Standard Package: 3,000 items
  • Mounting: SMD (SMT)
  • Current Supply (max): 1.3mA (typ)
  • Voltage Supply: 1.71V to 3.63V
  • Operating Temperature: -40°C to 85°C
