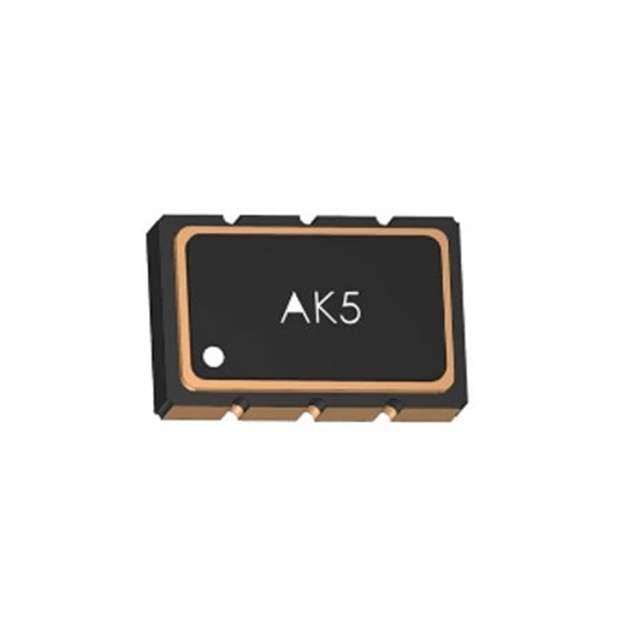

AK5DAF1-156.2500T2 Real Image
Same model may have multiple batches, images only for reference.

AK5DAF1-156.2500T2

Part No AK5DAF1-156.2500T2
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 156.25MHZ 3.3V LVDS / 156.25 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AK5
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 27mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338296-AK5DAF1-156.2500T2
Ultra Librarian 3D Model Ultra Librarian AK5DAF1-156.2500T2 CAD Model

Description

The 1338296-AK5DAF1-156.2500T2 is an oscillator component from the ClearClock™ AK5 series, designed for use in a variety of applications.

  • Series: ClearClock™ AK5
  • Frequency: 156.25MHz
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Voltage: 3.3V
  • Maximum Supply Current: 27mA
  • Package Type: 6-SMD, No Lead
  • Mounting Technology: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • REACH: Not Affected
  • Standard Package: 250
