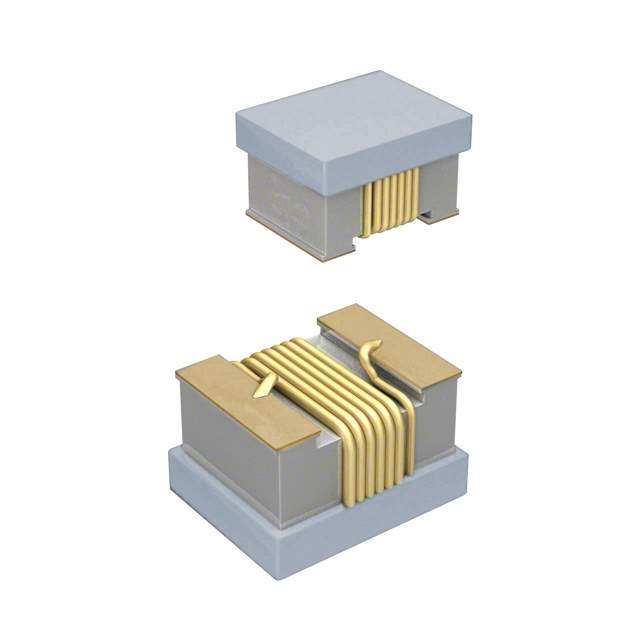

AISM-1210-470K-T

Part No AISM-1210-470K-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 47UH 60MA 7 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Abracon LLC
Series AISM-1210
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±10%
Current Rating 60mA
Shielding Unshielded
DC Resistance (DCR) 7 Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 15MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 2.52MHz
Mounting SMD
Package 1210
Manufacturer Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.094" (2.40mm)
Win Source Part Number 760306-AISM-1210-470K-T
Popularity Medium
Supply and Demand Status Balance
Family Name AISM-1210
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian AISM-1210-470K-T CAD Model

Description

Abracon LLC's 760306-AISM-1210-470K-T wirewound inductor is a surface mount component that comes in a 1210 case/package.

  • Inductance: 47µH
  • Current Rating: 60mA
  • Tolerance: ±10%
  • DC Resistance (DCR): 7 Ohm Max
  • Operating Temperature: -40°C to 85°C
  • Q @ Freq: 30 @ 2.52MHz
  • Applications: DC-DC converters, power supplies, and filters
