Same model may have multiple batches, images only for reference.

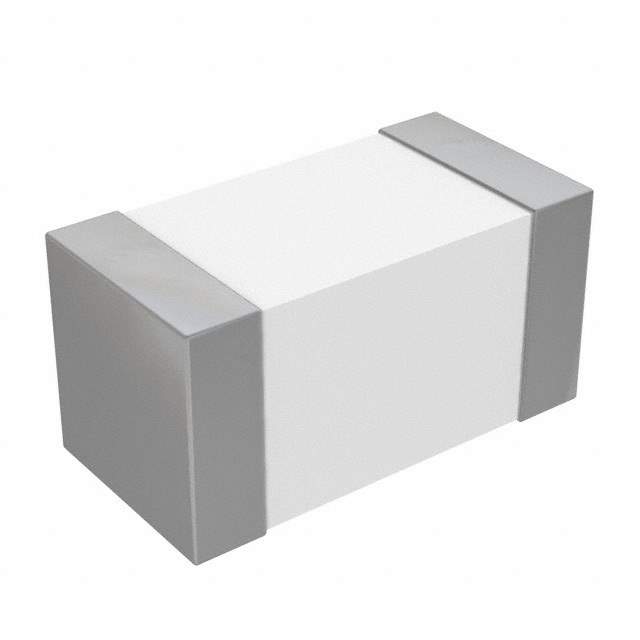

AIMC-0201-3N9S-T Real Image
Same model may have multiple batches, images only for reference.

AIMC-0201-3N9S-T

Part No AIMC-0201-3N9S-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 3.9NH 200MA 450MOHM SM / 3.9 nH Unshielded Multilayer Inductor 200 mA 450mOhm Max 0201 (0603 Metric)
Datasheet
AIMC-0201-3N9S-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIMC-0201
Package Tape & Reel
Type Multilayer
Material - Core Ceramic
Inductance 3.9 nH
Tolerance ±0.3nH
Current Rating (Amps) 200 mA
Shielding Unshielded
DC Resistance (DCR) 450mOhm Max
Q @ Freq 4 @ 100MHz
Frequency - Self Resonant 9GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package 0201 (0603 Metric)
Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max) 0.014" (0.35mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11494-6,AIMC02013N9ST,535-11494-1,535-11494-2,AIMC-0201-3N9S-T-ND
Standard Package 15,000
Win Source Part Number 1033539-AIMC-0201-3N9S-T
Ultra Librarian 3D Model Ultra Librarian AIMC-0201-3N9S-T CAD Model

Description

The AIMC-0201-3N9S-T is a fixed inductor manufactured by Abracon LLC.

  • Inductance: 3.9 nH
  • Tolerance: ±0.3nH
  • Q @ Freq: 4 @ 100MHz
  • Frequency of Self-Resonant: 9GHz
  • DC Resistance (DCR): 450mOhm max
  • Maximum Current Rating: 200mA
  • Shielding: unshielded
  • Temperature Range: -55°C to 125°C
  • Mounting: SMD (SMT)
  • Package: 0201 (0603 Metric)
  • Packaging: tape and reel
