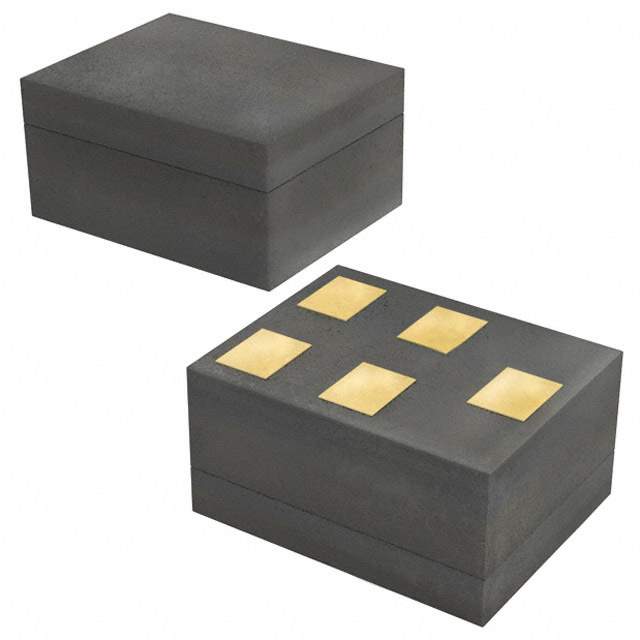

The AFS14A04-1575.42-T3 is a SAW (Surface Acoustic Wave) filter manufactured by Abracon LLC. SAW filters are electronic components used to selectively filter signals at specific frequencies. They are commonly used in radio frequency (RF) applications to remove unwanted signals and noise.

Applications

• GPS receivers: Filtering the GPS L1 signal at 1575.42 MHz.
• Wireless communication systems: Filtering signals in cellular, Wi-Fi, and Bluetooth devices.
• Satellite communication: Used for filtering in satellite receivers and transmitters.
• Radar systems: Used for signal processing in radar applications.
• RF front-end modules: Used for filtering and signal conditioning in RF modules.

Features

• Precise center frequency: Accurately filters signals at the specified frequency (1575.42 MHz).
• Low insertion loss: Minimizes signal attenuation.
• High rejection: Effectively attenuates unwanted signals outside the passband.
• Compact size: Allows for easy integration into RF circuits.
• Surface mount technology (SMT): Designed for automated assembly.
• RoHS compliant: Complies with environmental regulations.

Benefits

• Improved signal quality: Enhances the signal-to-noise ratio by removing unwanted signals.
• Enhanced receiver sensitivity: Improves the ability to detect weak signals.
• Reduced interference: Minimizes interference from adjacent channels.
• Compact design: Enables smaller and lighter RF devices.
• Reliable performance: Ensures stable and consistent operation.

Additional Details

The AFS14A04-1575.42-T3 SAW filter is specifically designed for filtering the GPS L1 signal at 1575.42 MHz. Key specifications include the insertion loss, bandwidth, rejection, and impedance. The datasheet provides detailed information on these parameters. The 'AFS14A04' is the series identifier, '1575.42' specifies the center frequency, and 'T3' probably indicates the packaging type. These filters use piezoelectric materials to convert electrical signals into acoustic waves and back, achieving very precise filtering.
