Same model may have multiple batches, images only for reference.

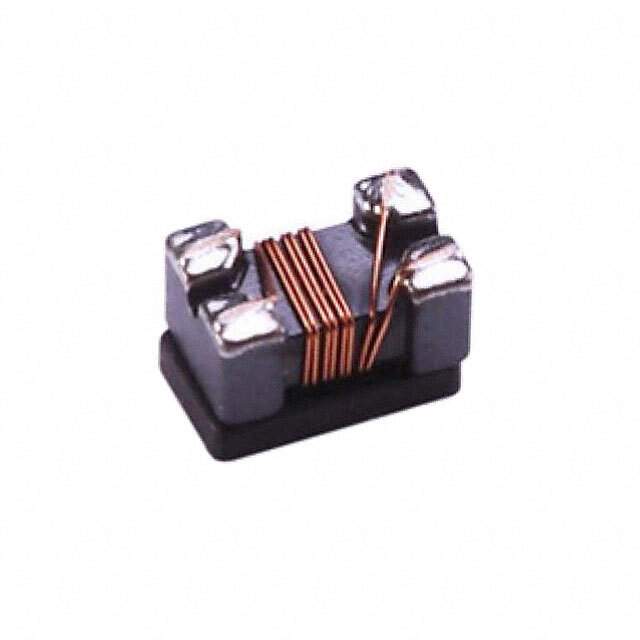

ACM-31-601M-T Real Image
Same model may have multiple batches, images only for reference.

ACM-31-601M-T

Part No ACM-31-601M-T
Manufacturer Abracon LLC
Catalog Common Mode Chokes
Description CMC 260MA 2LN 600 OHM SMD / 2 Line Common Mode Choke Surface Mount 600 Ohms 260mA DCR 800mOhm
Datasheet
ACM-31-601M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Abracon LLC
Series ACM-31
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 260mA
DC Resistance (DCR) (Max) 800mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.118" L x 0.063" W (3.00mm x 1.60mm)
Height (Max) 0.079" (2.00mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1339830-ACM-31-601M-T
Ultra Librarian 3D Model Ultra Librarian ACM-31-601M-T CAD Model

Description

The ACM-31-601M-T is a common mode choke from Abracon LLC.

  • Size Dimension: 0.118" L x 0.063" W (3.00mm x 1.60mm)
  • Height: 0.079" (2.00mm)
  • Voltage Rating: 50V
  • Current Rating: 260mA
  • Impedance @ 100 MHz: 600 Ohms
  • Application: Signal Line Filtering
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Pieces Per Package: 2,000
  • Operating Temperature: -40°C to 85°C
