Same model may have multiple batches, images only for reference.

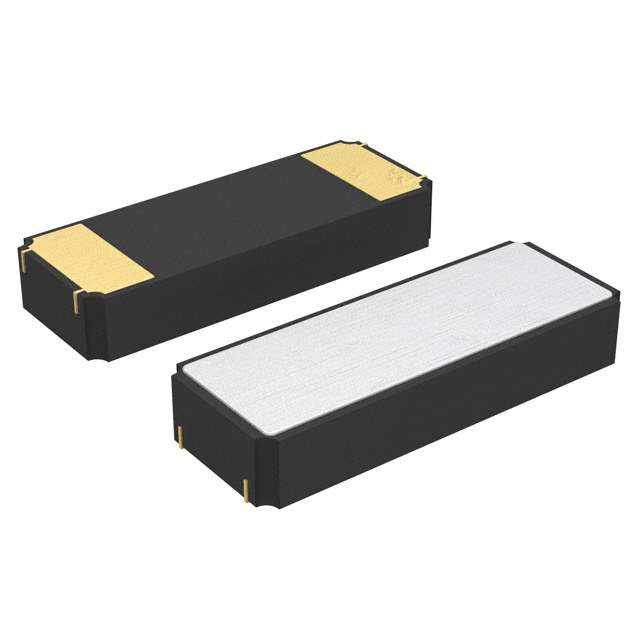

ABS10-32.768KHZ-4-T Real Image
Same model may have multiple batches, images only for reference.

ABS10-32.768KHZ-4-T

Part No ABS10-32.768KHZ-4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±30ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
Datasheet
ABS10-32.768KHZ-4-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS10
Package Tape & Reel
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±30ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.190" L x 0.070" W (4.90mm x 1.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1336743-ABS10-32.768KHZ-4-T
Ultra Librarian 3D Model Ultra Librarian ABS10-32.768KHZ-4-T CAD Model

Description

The ABS10 series kHz crystal is a surface mount component from Abracon LLC that comes in a tape and reel package.

  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Length: 0.190 inches
  • Width: 0.070 inches
  • Seated Height: 0.039 inches
  • Frequency: 32.768 kHz
  • ESR: 70 kOhms
  • Frequency Tolerance: ±30ppm
  • Operating Temperature: -40°C to 85°C
