Same model may have multiple batches, images only for reference.

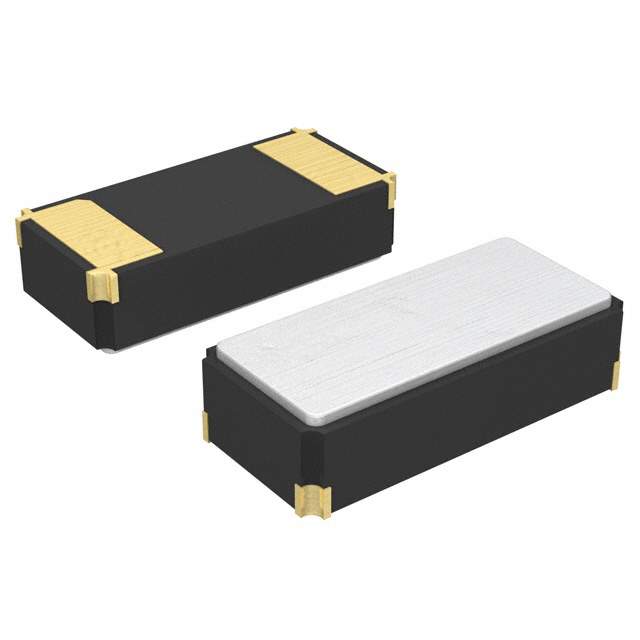

ABS07L-32.768KHZ-T Real Image
Same model may have multiple batches, images only for reference.

ABS07L-32.768KHZ-T

Part No ABS07L-32.768KHZ-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 55 kOhms 2-SMD, No Lead
Datasheet
ABS07L-32.768KHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS07L
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 55 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.015" (0.38mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 535-12058-2,535-12058-1,535-12058-6
Standard Package 3,000
Win Source Part Number 1224252-ABS07L-32.768KHZ-T
Ultra Librarian 3D Model Ultra Librarian ABS07L-32.768KHZ-T CAD Model

Description

The ABS07L-32.768KHZ-T is a kHz crystal (tuning fork) that is designed for use in electronic circuits.

  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Package: Tape and Reel
  • Package/Case: 2-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • Height-Seated (Max): 0.015" (0.38mm)
  • Series: ABS07L
