Same model may have multiple batches, images only for reference.

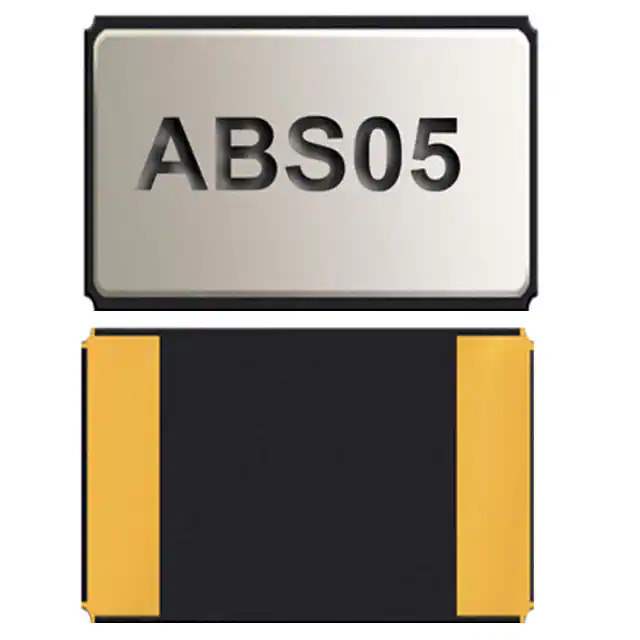

ABS05-32.768KHZ-T

Name: ABS05-32.768KHZ-T
Brand: Abracon LLC
SKU: 843101
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ABS05-32.768KHZ-T
Manufacturer	Abracon LLC
Catalog	Oscillators
Description	CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Crystals
Mfr	Abracon LLC
Series	ABS05
Package	Tape & Reel
Product Status	Active
Type	kHz Crystal (Tuning Fork)
Frequency	32.768 kHz
Frequency Tolerance	±20ppm
Load Capacitance	12.5pF
ESR (Equivalent Series Resistance)	90 kOhms
Operating Mode	Fundamental
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension	0.063" L x 0.039" W (1.60mm x 1.00mm)
Height - Seated (Max)	0.020" (0.50mm)
Standard Package	3,000 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.60.0010
Win Source Part Number	843101-ABS05-32.768KHZ-T
Ultra Librarian 3D Model	Ultra Librarian ABS05-32.768KHZ-T CAD Model

Alternative Products

Description

The 843101-ABS05-32.768KHZ-T is a kHz crystal (tuning fork) manufactured by Abracon LLC. It belongs to the ABS05 series in the Crystals, Oscillators, Resonators - Crystals category.

Package: Tape & Reel
Size: 0.063" L x 0.039" W (1.60mm x 1.00mm)
Seated Height: 0.020" (0.50mm)
Standard Package: 3,000 pieces
Frequency: 32.768 kHz
ESR: 90 kOhms
Mode: Fundamental
Frequency Tolerance: ±20ppm
Temperature Range: -40°C to 85°C
Mounting Type: Surface Mount
Lead Free: Yes
REACH: Unaffected
