Same model may have multiple batches, images only for reference.

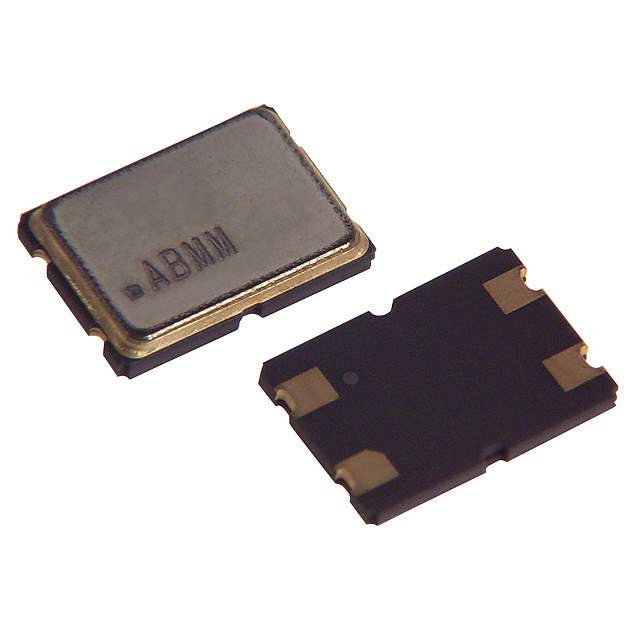

ABMM-12.000MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM-12.000MHZ-B2-T

Part No ABMM-12.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD / 12 MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Datasheet
ABMM-12.000MHZ-B2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABMM
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 300-9152-2,Q4164154A,535-9152-1,ABMM12000MHZB2T,300-9152-1,300-9152-2-ND,300-9152-1-ND,535-9152-6,535-9152-2
Standard Package 1,000
Win Source Part Number 980477-ABMM-12.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABMM-12.000MHZ-B2-T CAD Model

Description

The ABMM-12.000MHZ-B2-T is a MHz crystal that is a part of the ABMM series.

  • Temperature Range: -20°C to 70°C
  • Packaging: Tape and Reel
  • Standard Package: 1000
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
