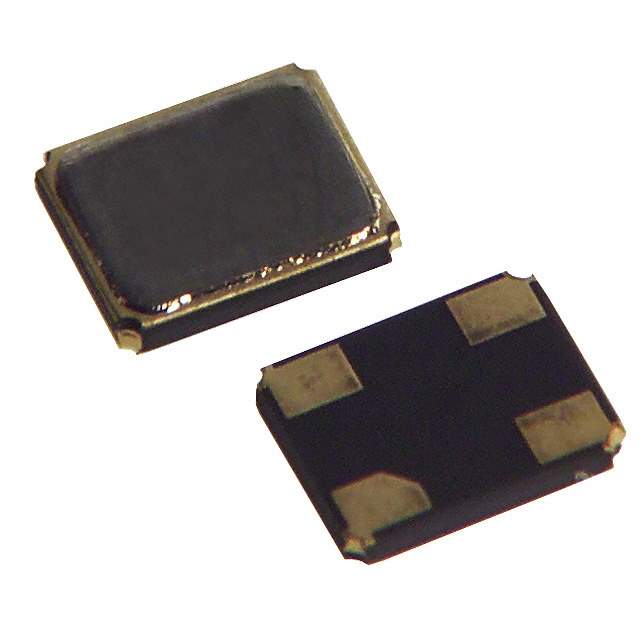

Same model may have multiple batches, images only for reference.

ABM9-16.000MHZ-10-D-1U-T

Name: ABM9-16.000MHZ-10-D-1U-T
Brand: Abracon LLC
SKU: 1341187
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ABM9-16.000MHZ-10-D-1U-T
Manufacturer	Abracon LLC
Catalog	Crystals
Description	CRYSTAL 16.0000MHZ 10PF SMD / 16 MHz ±10ppm Crystal 10pF 80 Ohms 4-SMD, No Lead
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Crystals
Mfr	Abracon LLC
Series	ABM9
Package	Tape & Reel
Product Status	Obsolete
Type	MHz Crystal
Frequency	16 MHz
Frequency Stability	±20ppm
Frequency Tolerance	±10ppm
Load Capacitance	10pF
ESR (Equivalent Series Resistance)	80 Ohms
Operating Mode	Fundamental
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.157" L x 0.098" W (4.00mm x 2.50mm)
Height - Seated (Max)	0.031" (0.80mm)
Standard Package	1,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.60.0050
Win Source Part Number	1341187-ABM9-16.000MHZ-10-D-1U-T
Ultra Librarian 3D Model	Ultra Librarian ABM9-16.000MHZ-10-D-1U-T CAD Model

Alternative Products

Description

The 1341187-ABM9-16.000MHZ-10-D-1U-T is a crystal component from the ABM9 series, designed for use in a variety of applications.

Frequency: 16MHz
Load Capacitance: 10pF
Frequency Stability: ±20ppm
Voltage: 3.3V
ESR: 80 Ohms
Package Type: 4-SMD, No Lead
Mounting Type: Surface Mount
Operating Temperature: -40°C to 85°C
REACH: Not affected
Standard Package: 1,000
Lifecycle Status: Obsolete
