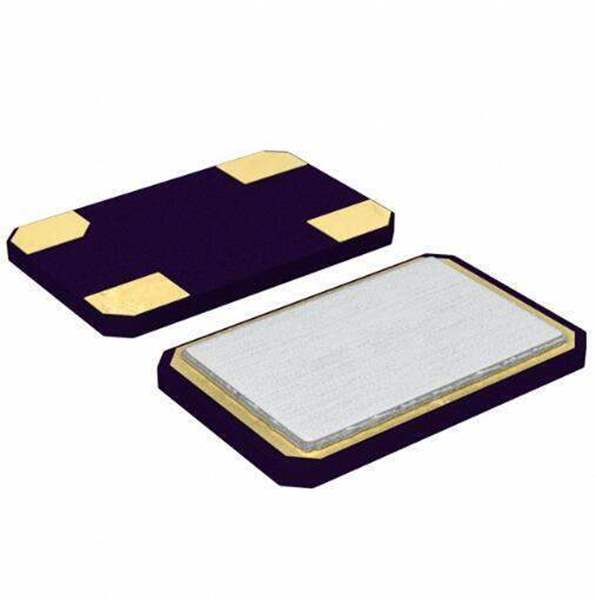

ABM8W-20.0000MHZ-4-D1X-T3 Abracon LLC
Same model may have multiple batches, images only for reference.

ABM8W-20.0000MHZ-4-D1X-T3

Part No ABM8W-20.0000MHZ-4-D1X-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 20.0000MHZ 4PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 4pF
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Win Source Part Number WS1305021-ABM8W-20.0000MHZ-4-D1X-T3
Ultra Librarian 3D Model Ultra Librarian ABM8W-20.0000MHZ-4-D1X-T3 CAD Model

Description

• Optimized for energy saving wearables and IoT applications
• Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR • Seam sealed for long term reliability
