Same model may have multiple batches, images only for reference.

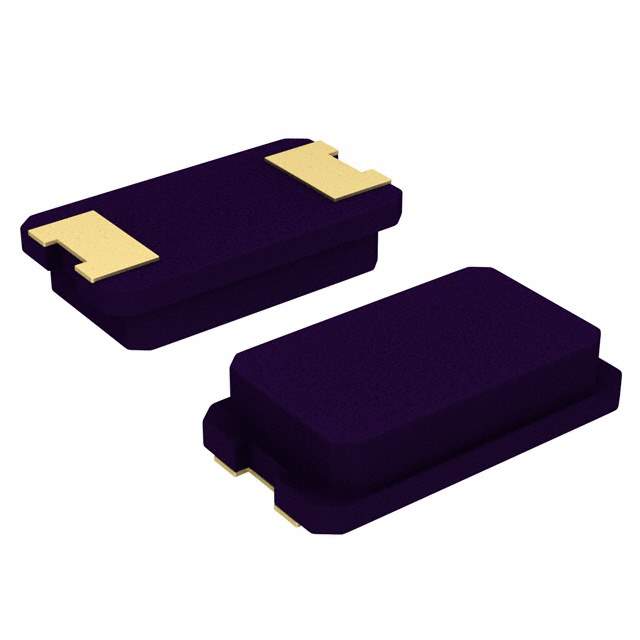

ABM7-24.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM7-24.000MHZ-D2Y-T

Part No ABM7-24.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD
Datasheet
ABM7-24.000MHZ-D2Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 24MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR 50 Ohm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.055" (1.40mm)
Win Source Part Number 1011540-ABM7-24.000MHZ-D2Y-T
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Clock & Timing, Computers & Computer Peripherals, Communications & Networking, Industrial, Clock & Timing
Ultra Librarian 3D Model Ultra Librarian ABM7-24.000MHZ-D2Y-T CAD Model

Description

The 1011540-ABM7-24.000MHZ-D2Y-T is a MHz crystal oscillator that is used in a variety of applications, including clock and timing, computers and computer peripherals, communications and networking, and industrial applications.

  • Manufacturer: Abracon LLC
  • Type: MHz Crystal Oscillator
  • Applications: Clock and Timing, Computers and Computer Peripherals, Communications and Networking, Industrial Applications
  • Frequency: 24MHz
  • Frequency Stability: ±30ppm
  • Load Capacitance: 18pF
  • ESR: 50 Ohm
  • Manufacturer Part Number: 1011540-ABM7-24.000MHZ-D2Y-T
  • Category: Crystals, Oscillators, and Resonators
