Same model may have multiple batches, images only for reference.

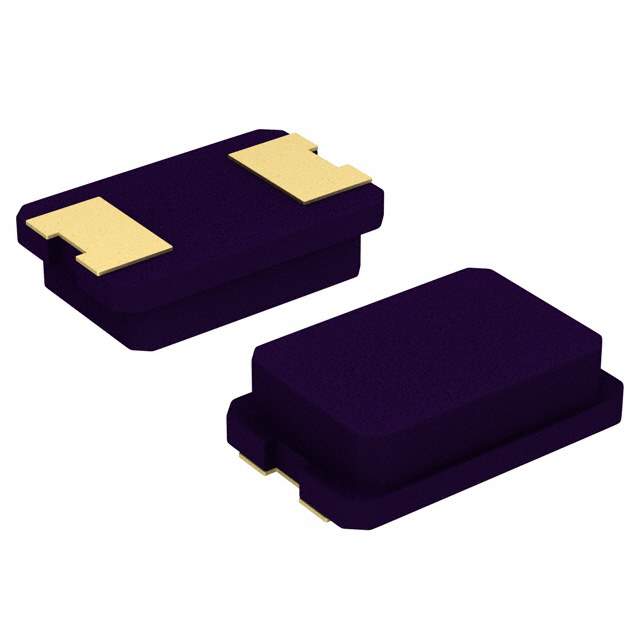

ABM3-18.432MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-18.432MHZ-B2-T

Part No ABM3-18.432MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 18.4320MHZ 18PF SMD / 18.432 MHz ±20ppm Crystal 18pF 40 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3
Package Tape & Reel
Type MHz Crystal
Frequency 18.432 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9104-6,300-9104-2-ND,300-9104-1-ND,535-9104-1,535-9104-2,ABM318432MHZB2T,300-9104-1,300-9104-2
Standard Package 1,000
Win Source Part Number 1034994-ABM3-18.432MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABM3-18.432MHZ-B2-T CAD Model

Description

Abracon LLC's ABM3 crystal has a frequency of 18.432 MHz and is available in tape and reel packaging.

  • Frequency: 18.432 MHz
  • Packaging: Tape and reel
  • ESR: 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Mounting: SMD
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Series: ABM3
  • Standard Package: 1000
  • EAR99: Compliant
  • REACH: REACH affected
  • HTSUS: 8541.60.0050
  • MSL: Not affected by MSL levels
