Same model may have multiple batches, images only for reference.

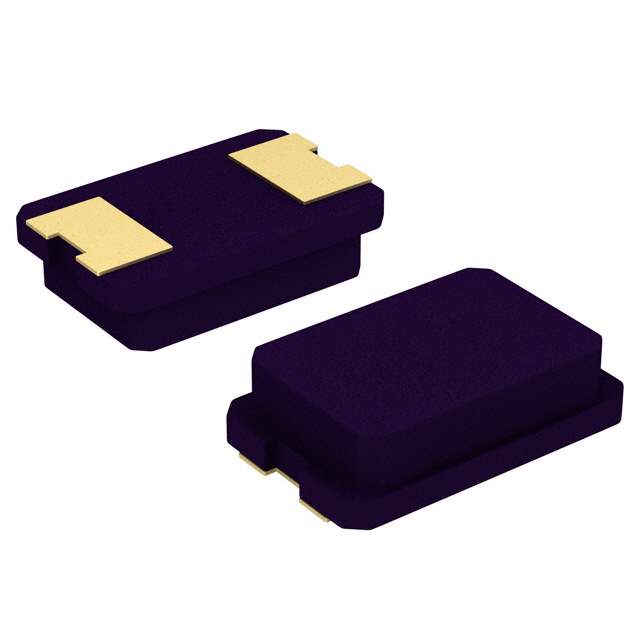

ABM3-10.0000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-10.0000MHZ-D2Y-T

Part No ABM3-10.0000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 10.0000MHZ 18PF SMD
Datasheet
ABM3-10.0000MHZ-D2Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ABM3
Packaging Reel package
Type MHz Crystal
Frequency 10MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.051" (1.30mm)
Win Source Part Number 760058-ABM3-10.0000MHZ-D2Y-T
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ABM3-10.0000MHZ-D2Y-T CAD Model

Description

Abracon LLC's ABM3 MHz crystal is a popular product in the crystals, oscillators, and resonators category.

  • Frequency: 10MHz
  • ESR: 60 Ohm
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Packaging: Reel
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Mounting Type: SMD
  • Operating Temperature Range: -40°C ~ 85°C
  • Halogen Free: Yes
  • Supply and Demand Status: Limited
  • REACH: No
  • Estimated EOL Date: 2026
