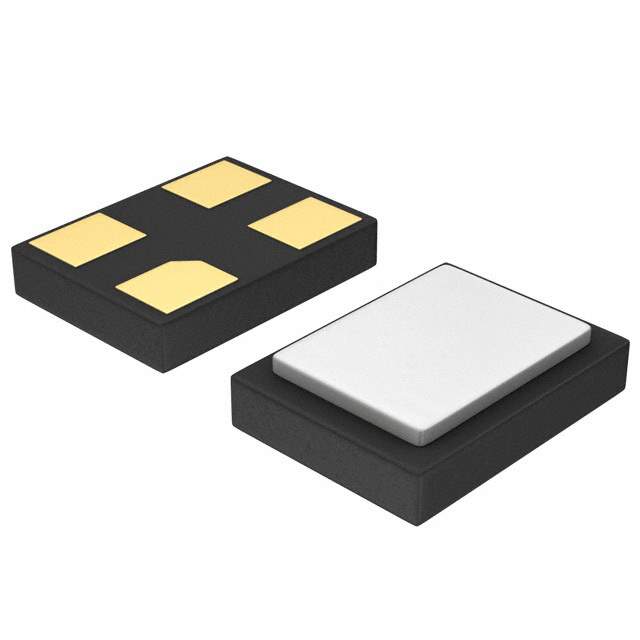

ABM12-27.000MHZ-B2X-T3 Real Image1 ABM12-27.000MHZ-B2X-T3 Real Image2
Same model may have multiple batches, images only for reference.
ABM12-27.000MHZ-B2X-T3 Real Image1 ABM12-27.000MHZ-B2X-T3 Real Image2
ABM12-27.000MHZ-B2X-T3 Real Image1 ABM12-27.000MHZ-B2X-T3 Real Image2
Same model may have multiple batches, images only for reference.

ABM12-27.000MHZ-B2X-T3

Part No ABM12-27.000MHZ-B2X-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 27.0000MHZ 8PF SMD / 27 MHz ±20ppm Crystal 8pF 200 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM12
Package Tape & Reel
Type MHz Crystal
Frequency 27 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.018" (0.45mm)
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 3,000 pcs
Win Source Part Number 1381297-ABM12-27.000MHZ-B2X-T3
Ultra Librarian 3D Model Ultra Librarian ABM12-27.000MHZ-B2X-T3 CAD Model

Description

The Abracon ABM12-27.000MHZ-B2X-T3 is a MHz crystal in the category of crystals, oscillators, and resonators.

  • Manufacturer: Abracon
  • Series: ABM12
  • Size / Dimension: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Height - Seated (Max): 0.018" (0.45mm)
  • Frequency: 27 MHz
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 8pF
  • Mode: Fundamental
  • Operating Temperature: -20°C to 70°C
  • Mounting Type: Surface Mount
