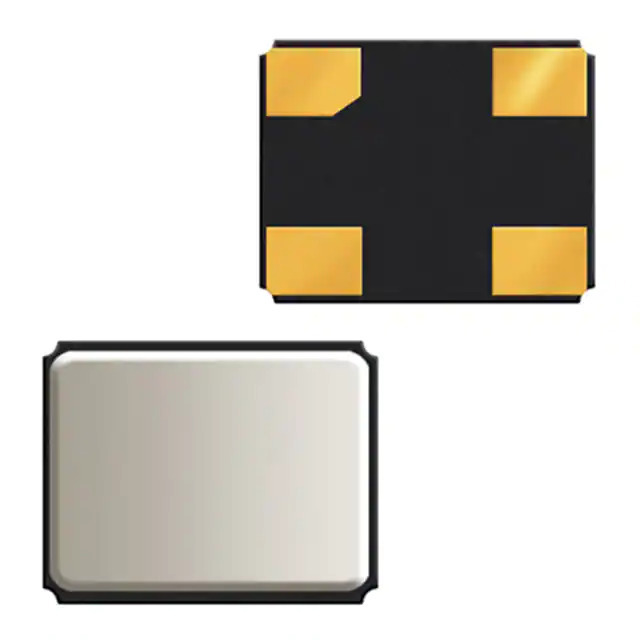

Same model may have multiple batches, images only for reference.
ABM11W-48.0000MHZ-8-D1X-T3 Abracon LLC
Same model may have multiple batches, images only for reference.

ABM11W-48.0000MHZ-8-D1X-T3

Part No ABM11W-48.0000MHZ-8-D1X-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 48.0000MHZ 8PF SMD / 48 MHz ±10ppm Crystal 8pF 40 Ohms 4-SMD, No Lead
Datasheet
ABM11W-48.0000MHZ-8-D1X-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM11W
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 48 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1357314-ABM11W-48.0000MHZ-8-D1X-T3
Ultra Librarian 3D Model Ultra Librarian ABM11W-48.0000MHZ-8-D1X-T3 CAD Model

Description

The ABM11W series from Abracon LLC is a 48 MHz crystal with a frequency stability of ±20ppm and a frequency tolerance of ±10ppm.

  • Manufacturer: Abracon LLC
  • Series: ABM11W
  • Frequency: 48 MHz
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±10ppm
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.020" (0.50mm)
  • ESR: 40 Ohms
  • Load Capacitance: 8pF
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tape and reel
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
