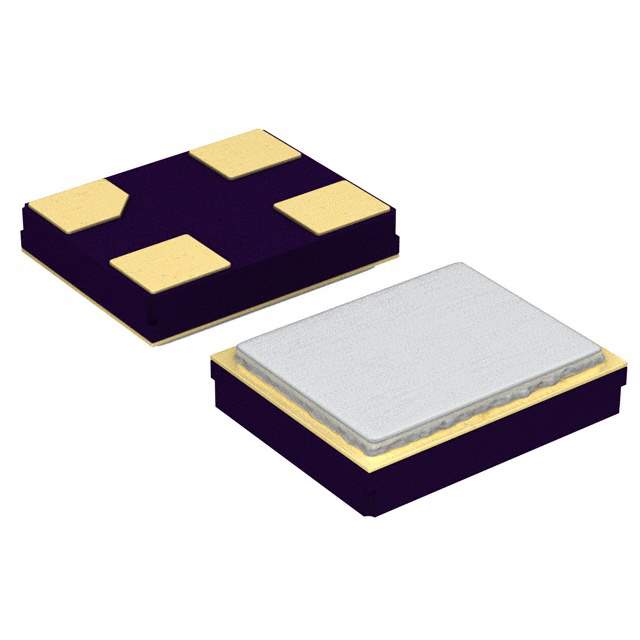

ABM11-38.400MHZ-D2X-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM11-38.400MHZ-D2X-T3

Part No ABM11-38.400MHZ-D2X-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 38.4000MHZ 10PF SMD / 38.4 MHz ±20ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Datasheet
ABM11-38.400MHZ-D2X-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM11
Package Tape & Reel
Type MHz Crystal
Frequency 38.4 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.023" (0.59mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-10948-6,535-10948-1,535-10948-2,ABM1138400MHZD2XT3
Standard Package 3,000
Win Source Part Number 1038316-ABM11-38.400MHZ-D2X-T3
Ultra Librarian 3D Model Ultra Librarian ABM11-38.400MHZ-D2X-T3 CAD Model

Description

The ABM11-38.400MHZ-D2X-T3 is a surface mount crystal oscillator that is designed for use in high-precision timing applications.

  • Frequency: 38.4MHz
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±20ppm
  • Load Capacitance: 10pF
  • ESR: 60 ohms
  • Package: 4-SMD, no-lead
  • Height: 0.023 inches
  • RoHS Compliant: Yes
  • Manufacturer: Abracon LLC
