Same model may have multiple batches, images only for reference.

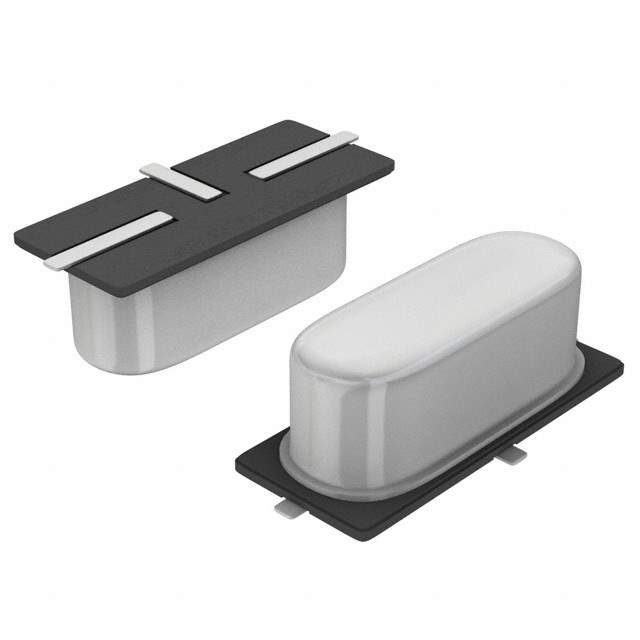

ABLSG-16.9344MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLSG-16.9344MHZ-D2Y-T

Part No ABLSG-16.9344MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.9344MHZ 18PF SMD / 16.9344 MHz ±20ppm Crystal 18pF 40 Ohms HC-49/US - 3 Lead
Datasheet
ABLSG-16.9344MHZ-D2Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLSG
Package Tape & Reel
Type MHz Crystal
Frequency 16.9344 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US - 3 Lead
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names ABLSG169344MHZD2YT,535-10619-6,ABLSG-16.9344MHZ-D-2-Y-T,535-10619-1,535-10619-2
Standard Package 1,000
Win Source Part Number 1034866-ABLSG-16.9344MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABLSG-16.9344MHZ-D2Y-T CAD Model

Description

The ABLSG-16.9344MHZ-D2Y-T crystal from Abracon LLC is a MHz crystal with a frequency of 16.9344MHz and a frequency stability of ±30ppm.

  • Frequency: 16.9344MHz
  • Frequency Stability: ±30ppm
  • Package: HC-49/US
  • Operating Temperature Range: -40°C to 85°C
  • Applications: microprocessors, digital circuits, and telecommunications
  • Series: ABLSG
  • Packaging: tape and reel
  • Units per reel: 1000
