Same model may have multiple batches, images only for reference.

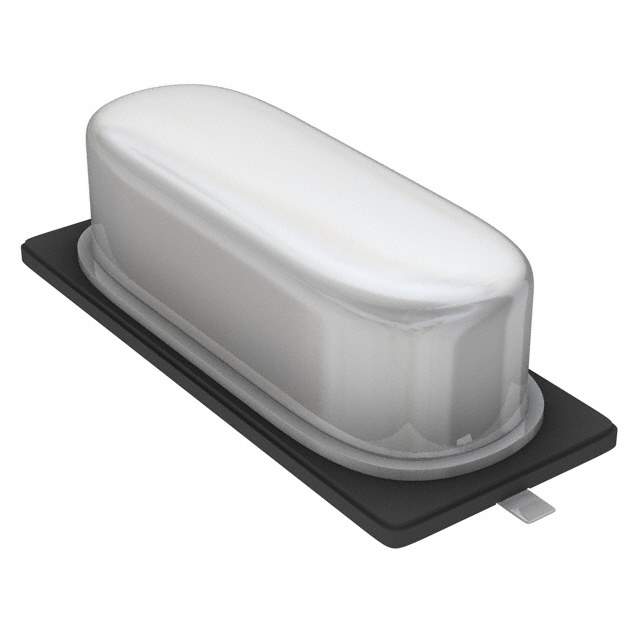

ABLS2-36.000MHZ-D4YF-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-36.000MHZ-D4YF-T

Part No ABLS2-36.000MHZ-D4YF-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 36.0000MHZ 18PF SMD
Datasheet
ABLS2-36.000MHZ-D4YF-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 36MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR 40 Ohm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
Win Source Part Number 1005222-ABLS2-36.000MHZ-D4YF-T
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Clock & Timing
Ultra Librarian 3D Model Ultra Librarian ABLS2-36.000MHZ-D4YF-T CAD Model

Description

The ABLS2-36.000MHZ-D4YF-T is a MHz crystal manufactured by Abracon LLC.

  • Manufacturer: Abracon LLC
  • Win Source Part Number: 1005222-ABLS2-36.000MHZ-D4YF-T
  • Supply and Demand: Sufficient
  • Mounting Type: SMD (SMT)
  • Frequency: 36MHz
  • Frequency Stability: ±30ppm
  • ESR: 40 Ohm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Height-Seated (Max): 0.130" (3.30mm)
  • Operating Temperature: -40°C to 85°C
