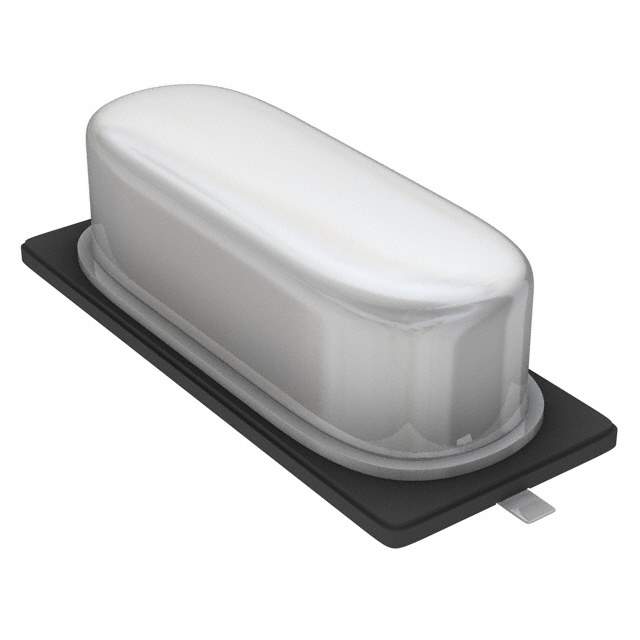

ABLS2-13.000MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-13.000MHZ-D4Y-T

Part No ABLS2-13.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 13.0000MHZ 18PF SMD
Datasheet
ABLS2-13.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ABLS2
Packaging Reel package
Type MHz Crystal
Frequency 13MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Maximum) 0.130" (3.30mm)
Win Source Part Number 760368-ABLS2-13.000MHZ-D4Y-T
Popularity Medium
Supply and Demand Status Limited
Family Name ABLS2
Introduction Date January 08, 2008
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ABLS2-13.000MHZ-D4Y-T CAD Model

Description

The ABLS2-13.000MHZ-D4Y-T MHz Crystal is a high-quality electronic component manufactured by Abracon LLC.

  • Series: ABLS2
  • Package: Reel
  • Frequency: 13MHz
  • Operating Mode: Fundamental
  • ESR: 50 Ohm
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Mounting Type: SMD
  • Dimensions: 0.449" L x 0.185" W (11.40mm x 4.70mm)
  • Height: 0.130" (3.30mm)
  • Halogen Free: Yes
  • EOL Date: 2025
