Same model may have multiple batches, images only for reference.

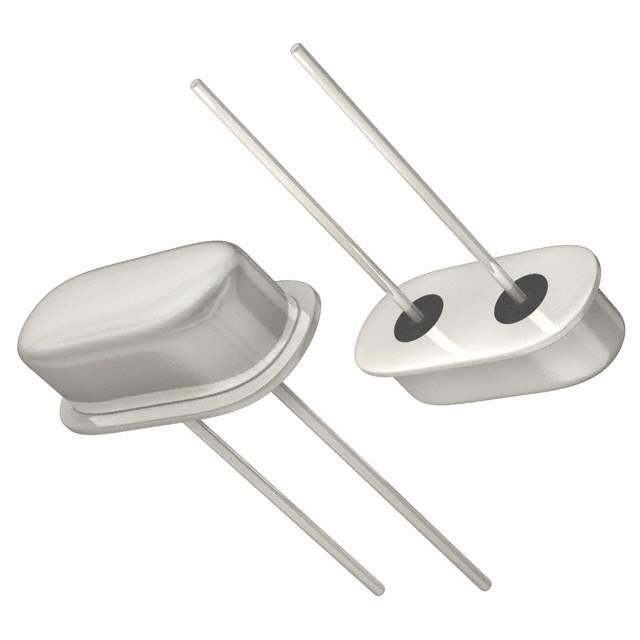

ABL-9.8304MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

ABL-9.8304MHZ-B2

Part No ABL-9.8304MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 9.8304MHZ 18PF TH / 9.8304 MHz ±20ppm Crystal 18pF 60 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABL
Package Bulk
Type MHz Crystal
Frequency 9.8304 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9064,300-9064,300-9064-ND
Standard Package 1,000
Win Source Part Number 1068572-ABL-9.8304MHZ-B2
Ultra Librarian 3D Model Ultra Librarian ABL-9.8304MHZ-B2 CAD Model

Description

Abracon LLC MHz Crystal is a high-quality electronic component that is designed to provide a reliable and stable frequency output of 9.8304MHz.

  • Frequency: 9.8304MHz
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Operating Mode: Fundamental
  • ESR: 60 Ohms
  • Height: 0.138" (3.50mm)
  • Dimensions: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Temperature Range: -20°C to 70°C
