Same model may have multiple batches, images only for reference.

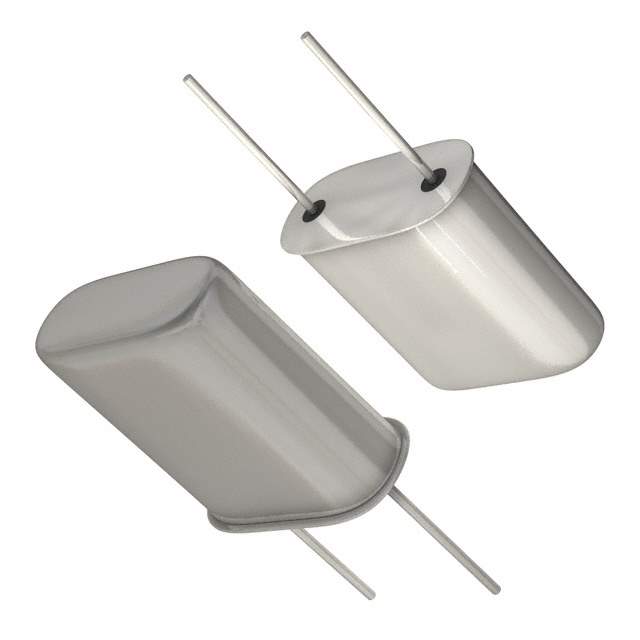

AB-8.192MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

AB-8.192MHZ-B2

Part No AB-8.192MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 8.1920MHZ 18PF TH / 8.192 MHz ±20ppm Crystal 18pF 35 Ohms HC-49/U
Datasheet
AB-8.192MHZ-B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series AB
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 8.192 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 35 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.530" (13.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names ,535-9029,300-9029,300-9029-ND,535-9029-ND,535-AB-8.192MHZ-B2TR
Standard Package 1,000
Win Source Part Number 1045857-AB-8.192MHZ-B2
Ultra Librarian 3D Model Ultra Librarian AB-8.192MHZ-B2 CAD Model

Description

The AB-8.192MHZ-B2 MHz Crystal from Abracon LLC is a through-hole type crystal that has a frequency of 8.192 MHz and a frequency tolerance of ±20ppm.

  • Operating Mode: Fundamental
  • ESR: 35 Ohms
  • Load Capacitance: 18pF
  • Operating Temperature: -20°C to 70°C
  • Length: 0.453 inches
  • Width: 0.197 inches
  • Package: HC-49/U
