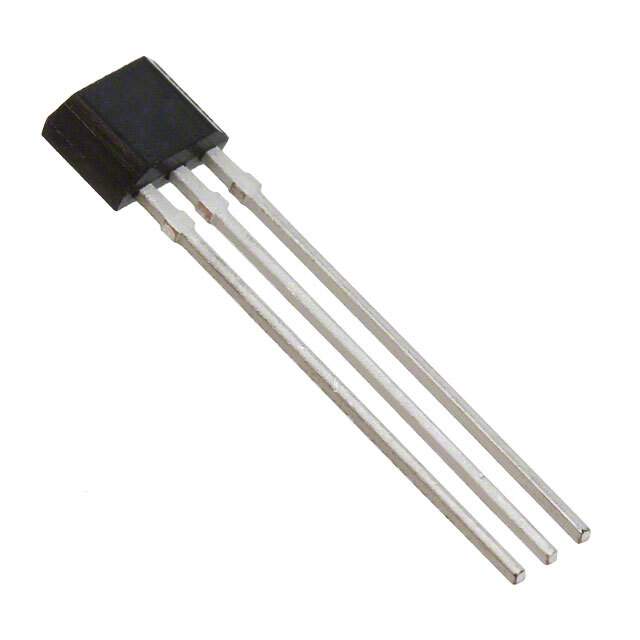

S-5742NBL0B-Y3N2U Real Image
Same model may have multiple batches, images only for reference.

S-5742NBL0B-Y3N2U

Part No S-5742NBL0B-Y3N2U
Manufacturer ABLIC U.S.A. Inc.
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH BIPOLAR TO92S / Digital Switch Bipolar Switch Open Drain Hall Effect TO-92S
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr ABLIC Inc.
Series S-5742B
Package Tape & Reel (TR)
Function Bipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 3.3mT Trip, -3.3mT Release
Test Condition 25°C
Voltage - Supply 3.5V ~ 26V
Current - Supply (Max) 4mA
Current - Output (Max) 20mA
Output Type Open Drain
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Through Hole
Supplier Device Package TO-92S
Package / Case TO-226-3, TO-92-3 Short Body
Base Product Number S-5742
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235236-S-5742NBL0B-Y3N2U
Ultra Librarian 3D Model Ultra Librarian S-5742NBL0B-Y3N2U CAD Model

Description

The S-5742NBL0B-Y3N2U is a part of the S-5742B series of magnetic sensors-switches (solid state) that are designed for use in various electronic devices.

  • Package: TO-226-3 or TO-92-3 short body package
  • Output Type: Open drain
  • Function: Bipolar switch
  • Sensing Range: 3.3mT trip and -3.3mT release
  • Voltage Supply: 3.5V to 26V
  • Mounting: Through hole
  • Manufacturer: ABLIC Inc.
  • Operating Temperature: -40°C to 125°C (TA)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8542.39.0001
