Same model may have multiple batches, images only for reference.

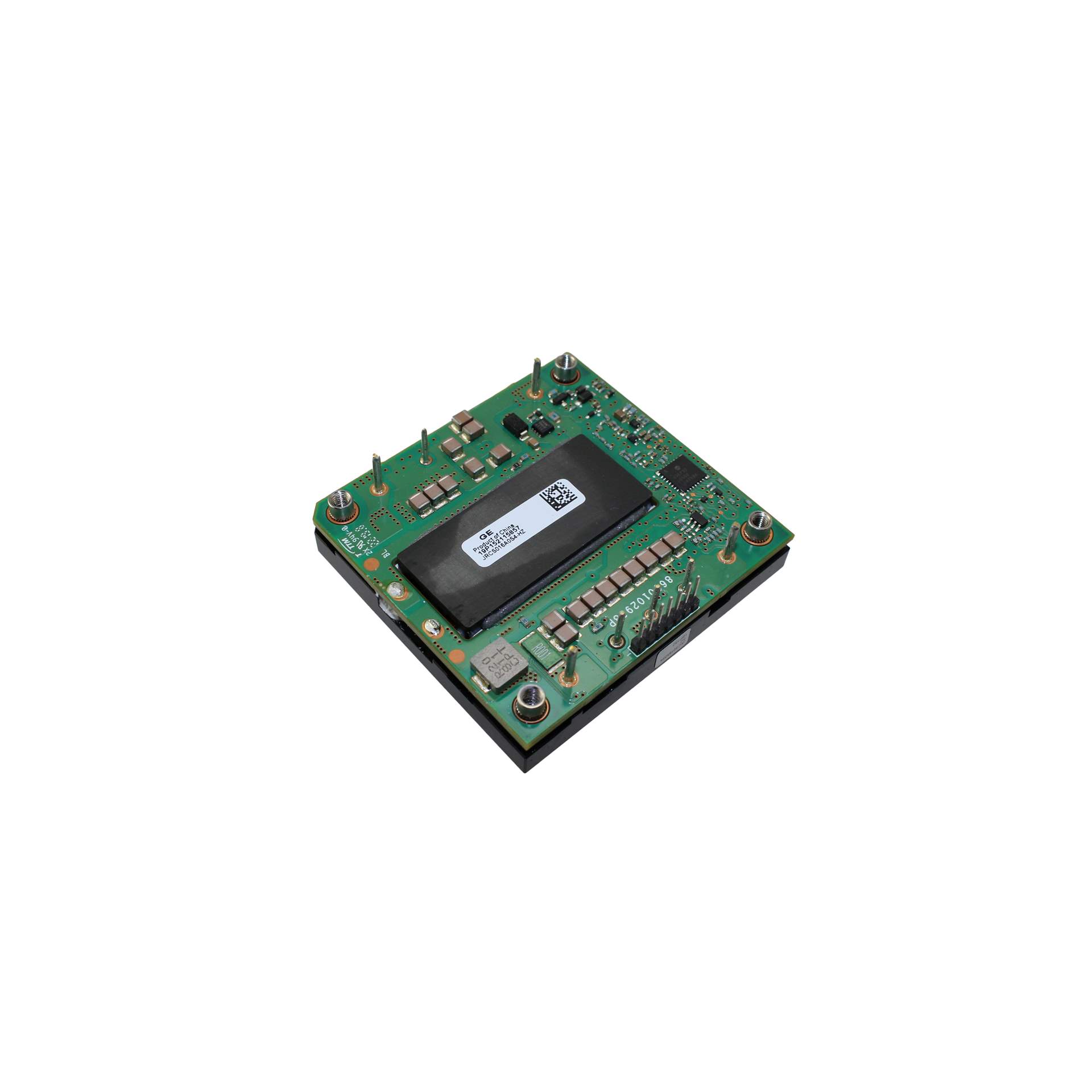

JRCS016A0S4-HZ

Name: JRCS016A0S4-HZ
Brand: ABB Embedded Power
SKU: 1350062
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JRCS016A0S4-HZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 18.5-60 V 400W / Non-Isolated PoL Module DC DC Converter 1 Output 18.5 ~ 60V 6.7A 18V - 85V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	JRCS016
Package	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	85V
Voltage - Output 1	18.5 ~ 60V
Current - Output (Max)	6.7A
Power (Watts)	400 W
Applications	ITE (Commercial)
Features	Adjustable Output, Remote On/Off, Remote Sense
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	95%
Mounting Type	Through Hole
Package / Case	Half Brick
Size / Dimension	2.39" L x 2.27" W x 0.51" H (60.7mm x 57.7mm x 13.0mm)
Supplier Device Package	Half Brick
Control Features	Enable, Active High
Base Product Number	JRCS016
Standard Package	40
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350062-JRCS016A0S4-HZ
Ultra Librarian 3D Model	Ultra Librarian JRCS016A0S4-HZ CAD Model

Alternative Products

Description

The JRCS016A0S4-HZ is a non-isolated PoL module DC-DC converter that features a power output of 400 W, adjustable output, remote on/off, and remote sense.

Voltage Input: 18V to 85V
Voltage Output: 18.5V to 60V
Mounting Type: through-hole
Standard Package: 40
Manufacturer: ABB Power Electronics Inc.
Application: Power Supplies - Board Mount - DC DC Converters
