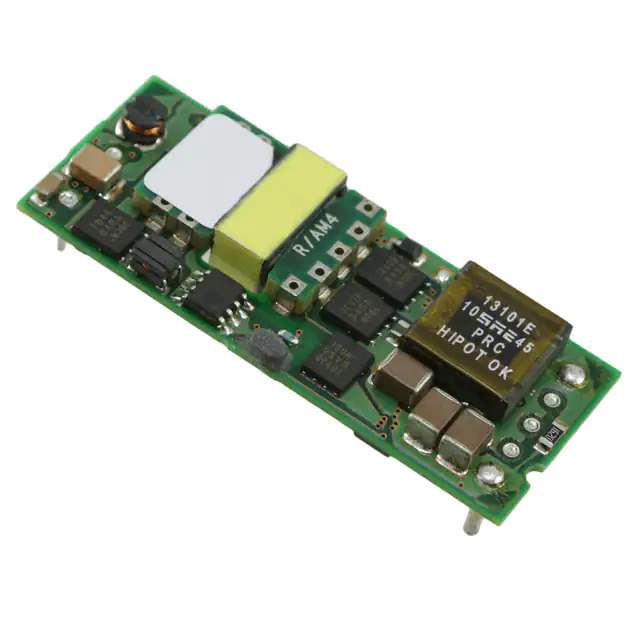

EQW020A0F1 Real Image
Same model may have multiple batches, images only for reference.

EQW020A0F1

Part No EQW020A0F1
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 66W / Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input
Datasheet
EQW020A0F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series EQW020
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 20A
Power (Watts) 66 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Size / Dimension 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
Control Features Enable, Active Low
Standard Package 48 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 589599-EQW020A0F1
Ultra Librarian 3D Model Ultra Librarian EQW020A0F1 CAD Model

Description

The 589599-EQW020A0F1 is a 66W DC-DC converter module from ABB Embedded Power.

  • Series: EQW020 series
  • Type: Isolated Module
  • Features: Remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO)
  • Package: Bulk
  • Size: 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
  • Application: ITE (Commercial)
  • Power: 66W
  • Isolation Voltage: 1.5 kV
  • Output: Single
  • Maximum Output Current: 20A
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 3.3V
  • Efficiency: 88%
  • Mounting Type: Through-Hole
  • Package: 8-DIP Module, 1/8 Brick
  • Operating Temperature: -40°C to 85°C
  • Classification: EAR99
  • REACH Regulations: Not affected
  • Status: Obsolete
  • Moisture Sensitivity: Not affected
