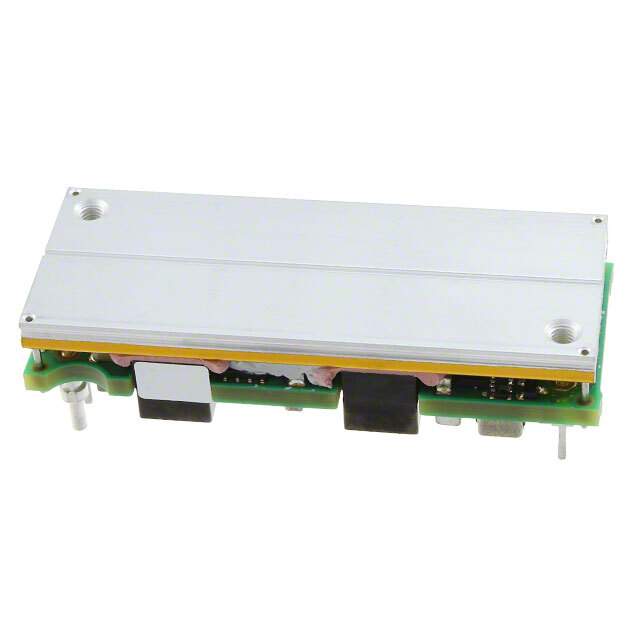

EHHD010A0B41-HZ Real Image
Same model may have multiple batches, images only for reference.

EHHD010A0B41-HZ

Part No EHHD010A0B41-HZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 120W / Isolated Module DC DC Converter 1 Output 12V 10A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series Hammerhead™ EHHD010A0B (120W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 10A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm)
Control Features Enable, Active Low
Base Product Number EHHD010
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 555-1356,EHHD010A0B41HZ,150029831
Standard Package 36
Win Source Part Number 1197154-EHHD010A0B41-HZ
Ultra Librarian 3D Model Ultra Librarian EHHD010A0B41-HZ CAD Model

Description

The EHHD010A0B41-HZ is a Hammerhead™ EHHD010A0B (120W) series isolated module DC-DC converter manufactured by ABB Power Electronics Inc.

  • Features: Remote on/off, OCP, OTP, OVP, and UVLO
  • Package: Bulk
  • Application: ITE (Commercial)
  • Standard Package: 36 units
  • Power: 120W
  • Control Features: Enable and active low
  • Voltage Isolation: 2.25kV
  • Outputs: One
  • Maximum Output Current: 10A
  • Input Voltage: 18V to 75V
  • Output Voltage: 12V
  • Efficiency: 93%
  • Mounting Type: Through-hole
  • Package/Case: 8-DIP Module, 1/8 Brick
  • Temperature Range: -40°C to 85°C
  • Alternative Part Number: EHHD010A0B41HZ
  • RoHS Compliance: Non-compliant
