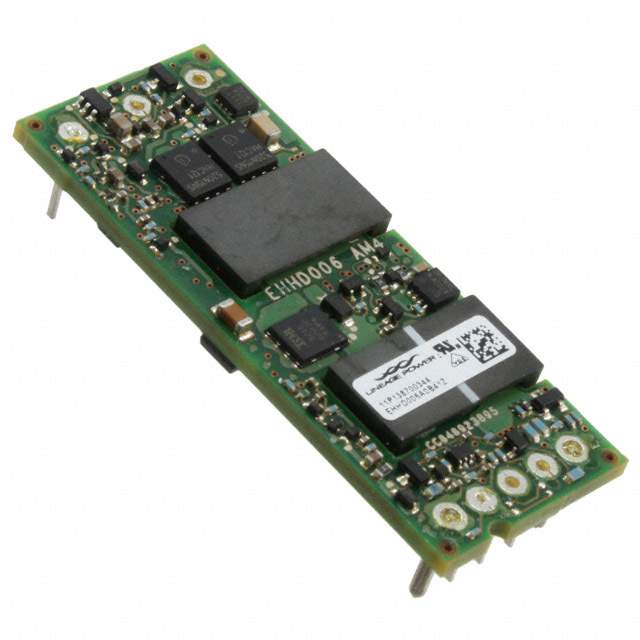

EHHD006A0B41-HZ Real Image
Same model may have multiple batches, images only for reference.

EHHD006A0B41-HZ

Part No EHHD006A0B41-HZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 72W / Isolated Module DC DC Converter 1 Output 12V 6A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series Hammerhead™ EHHD006A0B (72W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 6A
Power (Watts) 72 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.28" L x 0.90" W x 0.47" H (57.9mm x 22.8mm x 12.0mm)
Control Features Enable, Active Low
Base Product Number EHHD006
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 555-1279,EHHD006A0B41HZ,CC109167755,109167755
Standard Package 36
Win Source Part Number 1016651-EHHD006A0B41-HZ
Ultra Librarian 3D Model Ultra Librarian EHHD006A0B41-HZ CAD Model

Description

The Hammerhead™ EHHD006A0B (72W) Isolated Module is a power supply board mount DC-DC converter that is ideal for ITE (Commercial) applications.

  • Features: remote On/Off, OCP, OTP, OVP, UVLO
  • Power Output: 72 watts
  • Voltage Isolation: 2.25 kV
  • Output: one output
  • Maximum Output Current: 6A
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 12V
  • Efficiency: 91%
  • Mounting Type: through-hole
  • Package/Case: 8-DIP module, 1/8 brick
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 2.28" L x 0.90" W x 0.47" H (57.9mm x 22.8mm x 12.0mm)
  • Manufacturer: ABB Power Electronics Inc.
