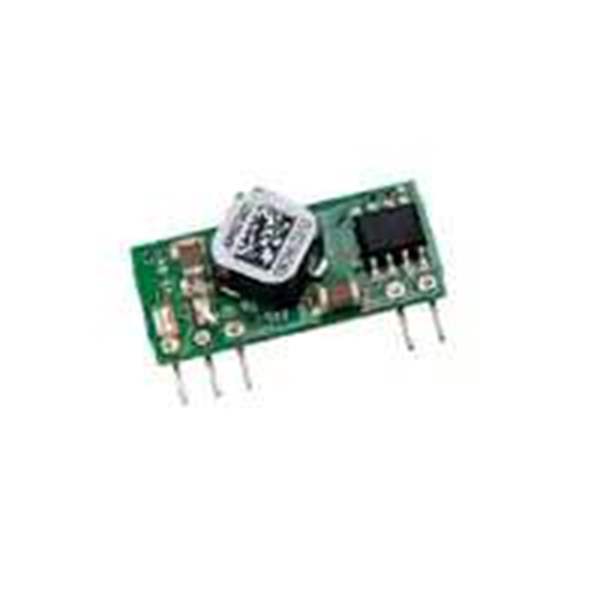

Same model may have multiple batches, images only for reference.

AXA003A0X-SR

Name: AXA003A0X-SR
Brand: ABB Embedded Power
SKU: 567343
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AXA003A0X-SR
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.8-5.5V 16W
Datasheet	AXA003A0X-SR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	Austin MiniLynx™
Package	Tape & Reel
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	8.3V
Voltage - Input (Max)	14V
Voltage - Output 1	0.8 ~ 5.5V
Current - Output (Max)	3A
Power (Watts)	16 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Surface Mount
Package / Case	5-SMD Module
Size / Dimension	0.80" L x 0.45" W x 0.29" H (20.3mm x 11.4mm x 7.3mm)
Control Features	Enable, Active Low
Standard Package	400 pcs
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	567343-AXA003A0X-SR
Ultra Librarian 3D Model	Ultra Librarian AXA003A0X-SR CAD Model

Alternative Products

Description

The ABB Embedded Power 567343-AXA003A0X-SR is a non-isolated PoL (Point of Load) module from the Austin MiniLynx™ series.

Series: Austin MiniLynx™
Application: Power Supply, ITE (Commercial)
Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO)
Power: 16 W
Maximum Output Current: 3A
Input Voltage Range: 8.3V to 14V
Output Voltage Range: 0.8V to 5.5V
Efficiency: 91%
Mounting: Surface Mount
Operating Temperature Range: -40°C to 85°C
