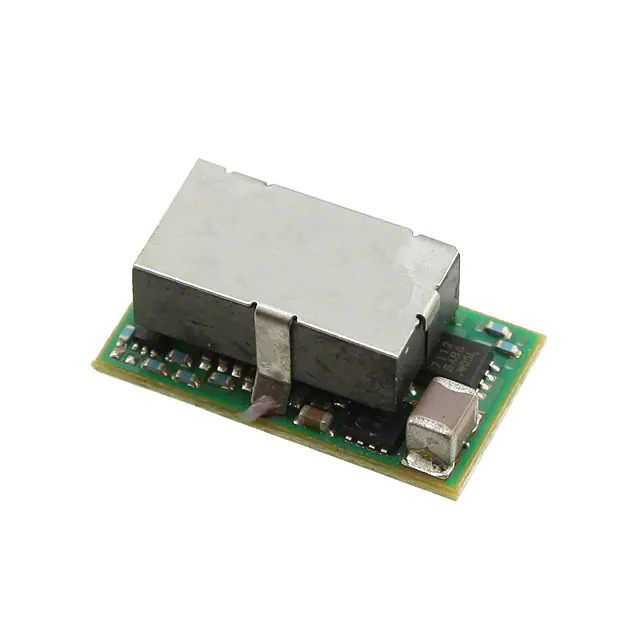

Same model may have multiple batches, images only for reference.

APTS020A0X3-SRDZ

Name: APTS020A0X3-SRDZ
Brand: ABB Embedded Power
SKU: 1377855
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	APTS020A0X3-SRDZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-5.5V 110W
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	TLynx™
Package	Tape & Reel
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.6 ~ 5.5V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	20A
Power (Watts)	110 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	91.8%
Mounting Type	Surface Mount
Package / Case	Module
Size / Dimension	1.30" L x 0.53" W x 0.33" H (33.0mm x 13.5mm x 8.5mm)
Control Features	Enable, Active Low
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1377855-APTS020A0X3-SRDZ
Ultra Librarian 3D Model	Ultra Librarian APTS020A0X3-SRDZ CAD Model

Alternative Products

Description

The APTS020A0X3-SRDZ is a non-isolated PoL module designed for DC-DC conversion manufactured by ABB Power Electronics Inc..

Series: TLynx™
Power Rating: 110W
Maximum Output Current: 20A
Input Voltage: 4.5V to 14V
Output Voltage: 0.6V to 5.5V
Features: Remote On/Off, Overcurrent Protection, Overtemperature Protection, Overvoltage Protection, Undervoltage Lockout
ECCN: EAR99
Status: Obsolete
Package: Module
Mounting Type: Surface Mount
Efficiency: 91.8%
Application: ITE (Commercial)
