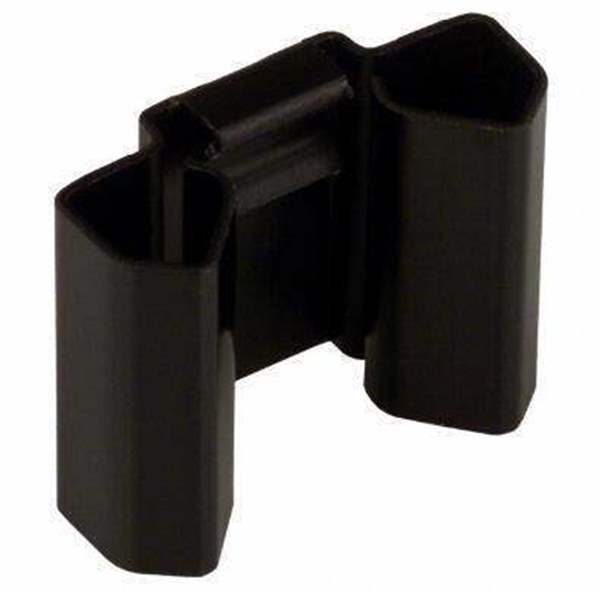

579302B00000GAavid, Thermal Division of Boyd Corporation
Same model may have multiple batches, images only for reference.

579302B00000G

Part No 579302B00000G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 SNAP-DOWN .75"
Datasheet
579302B00000G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Aavid, Thermal Division of Boyd Corporation
Category Fans, Thermal Management Thermal Heat Sinks
Package Bag
Product Status Active
Type Board Level
Shape Rectangular, Fins
Length 0.750" (19.05mm)
Width 0.980" (24.89mm)
Fin Height 0.440" (11.18mm)
Thermal Resistance @ Forced Air Flow 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural 16.80°C/W
Win Source Part Number WS1209660-579302B00000G
Ultra Librarian 3D Model Ultra Librarian 579302B00000G CAD Model

Description

Heat Sink TO-220 Aluminum 3.0W @ 50°C Board Level
