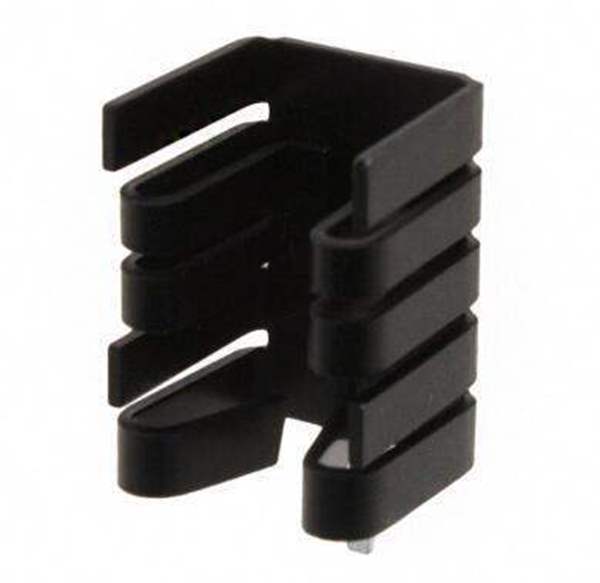

577202B00000G Aavid, Thermal Division of Boyd Corporation
Same model may have multiple batches, images only for reference.

577202B00000G

Part No 577202B00000G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEAT SINK TO-220 .500" COMPACT
Datasheet
577202B00000G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Aavid, Thermal Division of Boyd Corporation
Category Fans, Thermal Management Thermal Heat Sinks
Package Bag
Product Status Active
Type Board Level
Shape Rectangular, Fins
Length 0.750" (19.05mm)
Width 0.520" (13.21mm)
Fin Height 0.500" (12.70mm)
Power Dissipation @ Temperature Rise 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow 10.00°C/W @ 200 LFM
Win Source Part Number WS1209626-577202B00000G
Ultra Librarian 3D Model Ultra Librarian 577202B00000G CAD Model

Description

Heat Sink TO-220 Aluminum 1.5W @ 40°C Board Level
