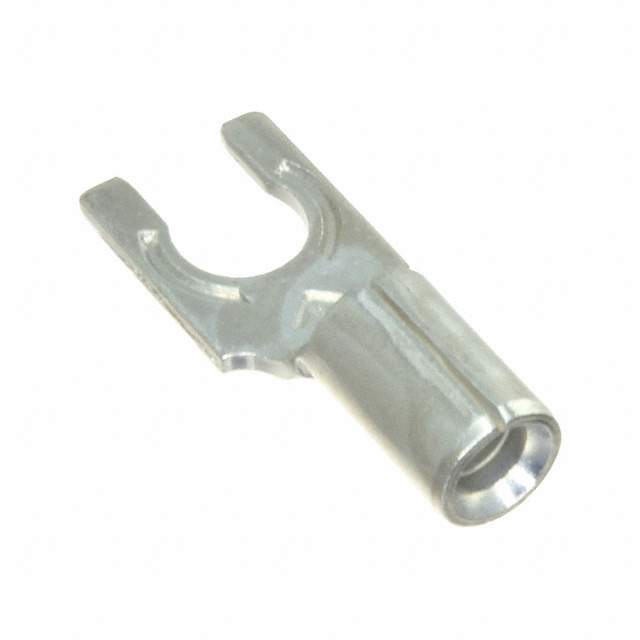

SS-32-6 Real Image
Same model may have multiple batches, images only for reference.

SS-32-6

Part No SS-32-6
Manufacturer 3M
Catalog Terminals
Datasheet
SS-32-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Spade Connectors
Mfr 3M
Series Highland™
Package Bulk
Terminal Type Spring, Snap
Stud/Tab Size 6 Stud
Width - Outer Edges 0.250" (6.35mm)
Length - Overall 0.680" (17.27mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Non-Insulated
Features Butted Seam
Length - Ring Center to Termination 0.250" (6.35mm)
Length - Termination 0.250" (6.35mm)
Base Product Number SS-32
Other Names 05400729971,3M157239,7100163846,SS-32-6,80601397781,00054007299714
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285139-SS-32-6
Ultra Librarian 3D Model Ultra Librarian SS-32-6 CAD Model

Description

The Highland™ spade connector is a reliable and efficient solution for connecting wires. 3M

  • Seam Type: Butted Seam
  • Termination: Crimp
  • Wire Gauge: 14-16 AWG
  • Stud Size: 6.35mm
  • Insulation: Non-Insulated
  • Length: 17.27mm
  • Width: 6.35mm
  • Mounting Type: Free Hanging (In-Line)
  • Length of Ring Center to Termination: 6.35mm
  • Package: Bulk
  • Connectors: 1,000
