Same model may have multiple batches, images only for reference.

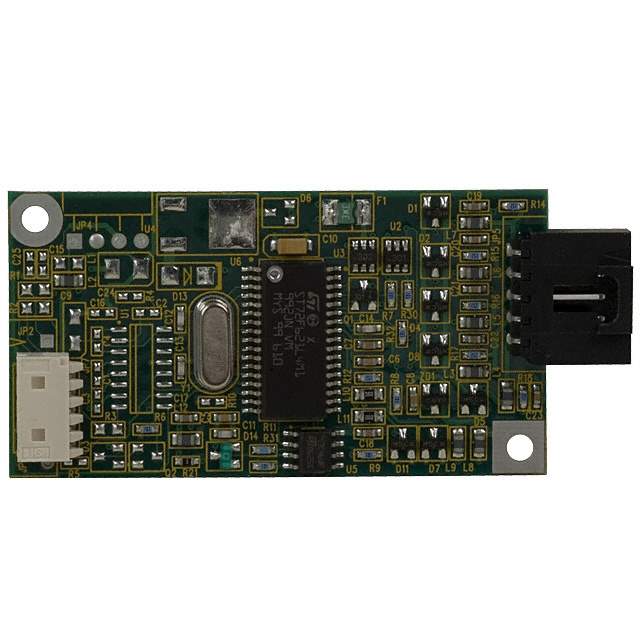

SC501U Real Image
Same model may have multiple batches, images only for reference.

SC501U

Part No SC501U
Manufacturer 3M
Catalog Display, Monitor - LCD Driver/Controller
Description LCD DRVR BRD 5WIRE RESISTIVE USB / series 5 Wire Resistive LCD Driver/Controller 5V USB 2.85" L x 1.30" W (72.4mm x 33mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display, Monitor - LCD Driver/Controller
Mfr 3M
Series SC500
Package Box
Product Status Obsolete
Touchscreen 5 Wire Resistive
Voltage - Input 5V
Dimension 2.85" L x 1.30" W (72.4mm x 33mm)
Interface USB
Temperature Range - Operating 0°C ~ 65°C
Base Product Number SC501
Other Names 3M5543,98000328249
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1242510-SC501U
Ultra Librarian 3D Model Ultra Librarian SC501U CAD Model

Description

The 3M 1242510-SC501U is a display monitor with an LCD driver/controller from the SC500 series. It has a USB interface and a voltage input of 5V.

  • Interface: USB
  • Voltage Input: 5V
  • Operating Temperature Range: 0°C ~ 65°C
  • Touchscreen: 5 wire resistive
  • ECCN: EAR99
  • Standard Package: 1 unit
  • Product Status: Obsolete
