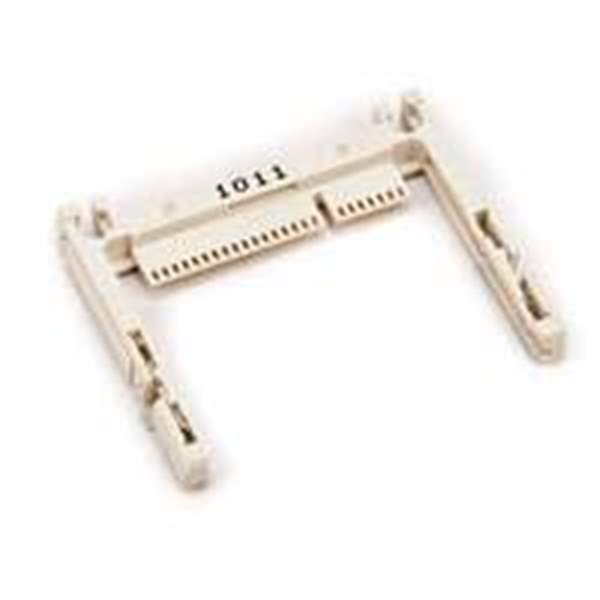

N7G24-A0B2RA-00-0HT 3M
Same model may have multiple batches, images only for reference.

N7G24-A0B2RA-00-0HT

Part No N7G24-A0B2RA-00-0HT
Manufacturer 3M
Catalog Memory Connectors - PC Card Sockets
Description CONN CFAST CARD R/A SMD
Datasheet
N7G24-A0B2RA-00-0HT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

  • Headers mate with both CFast™ Type I and Type II cards
  • Extended guide rails enable accurate and easy card insertion
  • Single row surface mount solder tails facilitate auto placement and IR soldering
  • Optional 2 mm board standoff enables board population
  • Meets CFA standards for known compatibility and reliability
  • Optional ejector and card retainer can be purchased pre-assembled or separately
  • Integral side solder tab with card grounding feature and also prevent the card from ‘flying’ out of header during ejection
  • See the Regulatory Information Appendix (RIA) in the “RoHS compliance” section of www.3Mconnector.com for compliance information (RIA E1 & C1 apply)
