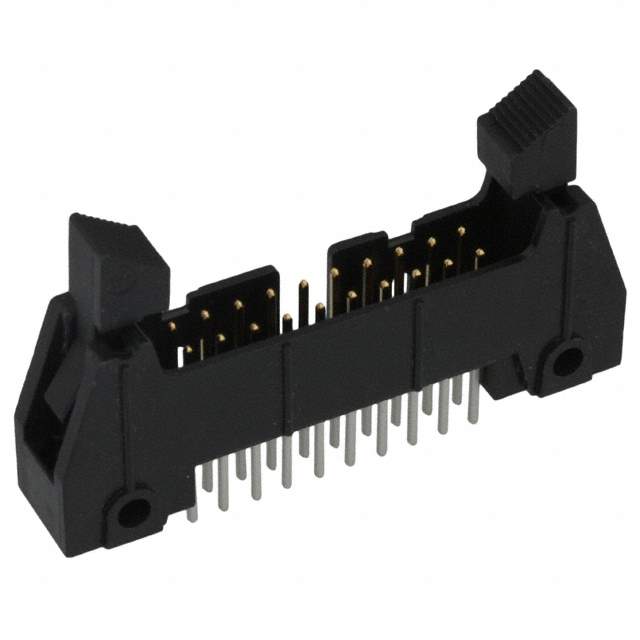

N3428-6202RB

Part No N3428-6202RB
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3428
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 51111627594,5111165725,51111657256,N34286202RB,5111162759,N3428-6502RB-ND,N3428-6202RB-ND,05111162759,XP700003674,N3428-6502RB,N34286502RB,80000901035,00051111627594,80400031672,7100005187,05111165725,MHS20S
Standard Package 300
Win Source Part Number 1010846-N3428-6202RB
Ultra Librarian 3D Model Ultra Librarian N3428-6202RB CAD Model

Description

The 945328 is a male pin header connector designed for board to board or cable connections.

  • Design: Shrouded 4-wall
  • Positions: 20
  • Rows: 2
  • Features: Keying slot and mounting flange
  • Contact Material: Copper alloy
  • Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT), polyester, glass-filled
  • Voltage Rating: -
  • Current Rating: 1.75A
  • Contact Finish (Mating): Gold, 30.0μin (0.76μm)
  • Contact Finish (Post): Tin, 200.0μin (5.08μm)
  • Temperature Range: -55°C to 105°C
  • Packaging: Bulk
  • Standard Package: 300 units
