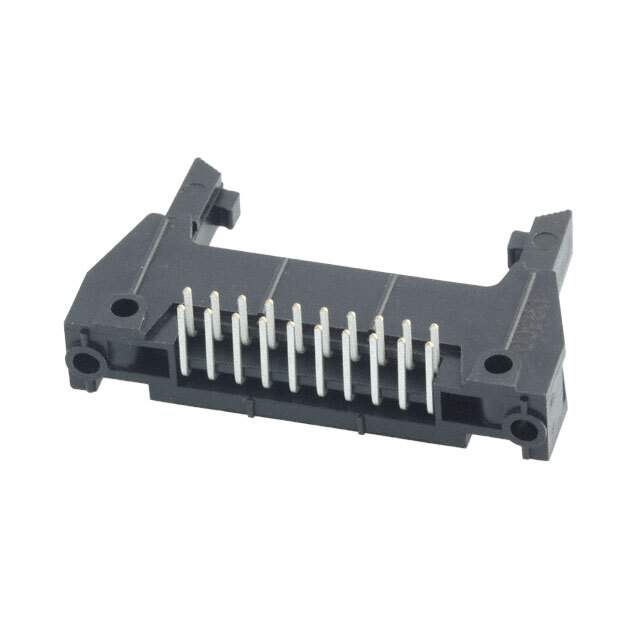

N3428-5302RB Real Image
Same model may have multiple batches, images only for reference.

N3428-5302RB

Part No N3428-5302RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 3000
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT) , Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number N3428
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351748-N3428-5302RB
Ultra Librarian 3D Model Ultra Librarian N3428-5302RB CAD Model

Description

The 3M 3000 series header is a male pin connector designed for use in rectangular connectors and interconnects.

  • Positions: 20
  • Features: keying slots and mounting flanges
  • Connector Type: header
  • Contact Type: male pin
  • Positions Loaded: All
  • Rows: two rows
  • Termination: solder
  • Fastening Type: latch lock/eject hooks, long
  • Package: bulk package
  • Contact Material: copper alloy
  • Application: board to board or cable applications
  • Pitch: 0.100" (2.54mm)
  • Contact Finish (Mating): gold
  • Contact Finish Thickness (Mating): 30.0µin (0.76µm)
  • Post Contact Finish: tin
  • Contact Finish Thickness (Post): 200.0µin (5.08µm)
  • Shrouded: four walls
  • Row Spacing: 0.100" (2.54mm)
  • Operating Temperature Range: -55°C to 105°C
